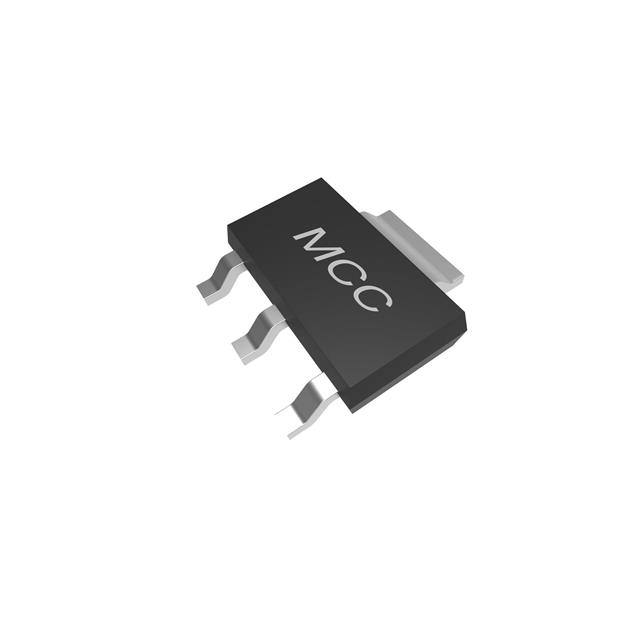

MCT1117C-3.3-TP
ActiveMicro Commercial Components
INTERFACE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MCT1117C-3.3-TP
ActiveMicro Commercial Components
INTERFACE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCT1117C-3.3-TP |
|---|---|
| Current - Output | 1 A |
| Current - Quiescent (Iq) | 5 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-261AA, TO-261-4 |
| Protection Features | Over Temperature |
| PSRR [Max] | 62 dB |
| PSRR [Min] | 60 dB |
| Supplier Device Package | SOT-223 |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2500 | $ 0.09 | |
Description
General part information
MCT1117C-3.3-TP
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
