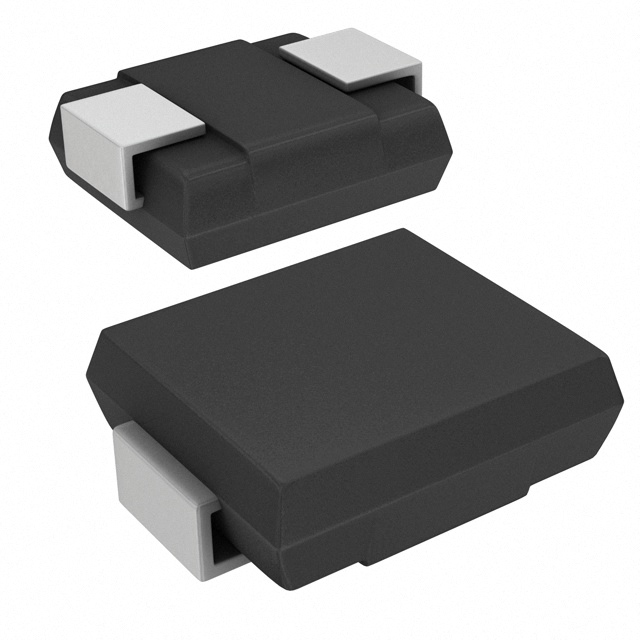

SMCJ43AJ
ActiveWeEn Semiconductors Co., Ltd
SMCJ43A/SMC/REEL 13" Q1/T1 *STA
Deep-Dive with AI
Search across all available documentation for this part.
SMCJ43AJ
ActiveWeEn Semiconductors Co., Ltd
SMCJ43A/SMC/REEL 13" Q1/T1 *STA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ43AJ |
|---|---|
| Applications | General Purpose |
| Current - Peak Pulse (10/1000µs) | 21.7 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Supplier Device Package | SMC |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 48.2 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 69.4 V |
| Voltage - Reverse Standoff (Typ) | 43 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 12000 | $ 0.12 | |
| 30000 | $ 0.12 | |||
| 60000 | $ 0.11 | |||
Description
General part information
SMCJ43AJ
69.4V Clamp 21.7A Ipp Tvs Diode Surface Mount SMC
