MPQ7231GLE-D30-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
MPSAFETM 42V, 3A BUCK OR 2.4A BU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ7231GLE-D30-AEC1-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
MPSAFETM 42V, 3A BUCK OR 2.4A BU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ7231GLE-D30-AEC1-P |
|---|---|
| Applications | Camera Flash |
| Current - Output / Channel | 3 A, 2.4 A |
| Dimming | Analog, PWM |
| Frequency | 2.4 MHz, 1.25 MHz |
| Grade | Automotive |
| Internal Switch(s) | True |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |

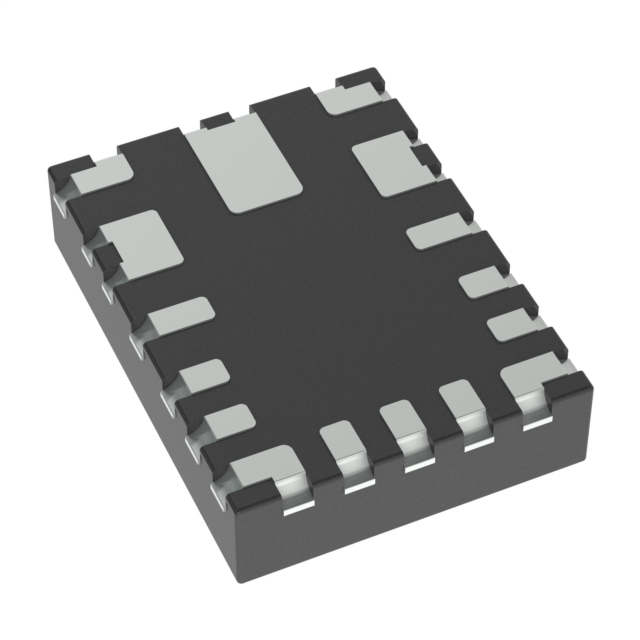

| Package / Case | 19-PowerVFQFN |
| Qualification | AEC-Q100 |
| Supplier Device Package | 19-QFN (3x4) |
| Topology | Step-Down (Buck), Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 42 V |
| Voltage - Supply (Min) [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.12 | |
| 10 | $ 3.70 | |||
| 25 | $ 3.50 | |||
| 100 | $ 3.03 | |||
| 250 | $ 2.88 | |||
| Digi-Reel® | 1 | $ 4.12 | ||
| 10 | $ 3.70 | |||
| 25 | $ 3.50 | |||
| 100 | $ 3.03 | |||
| 250 | $ 2.88 | |||
| Tape & Reel (TR) | 500 | $ 2.58 | ||
| 1000 | $ 2.18 | |||
| 2500 | $ 2.07 | |||
| 5000 | $ 1.99 | |||
Description
General part information
MPQ7231GLE-D30-AEC1-P
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) Analog, PWM Dimming 2.4A, 3A 19-QFN (3x4)
