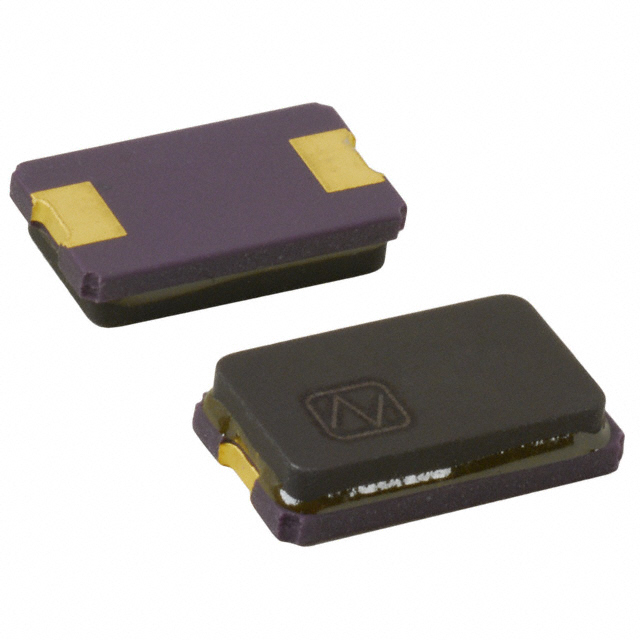

LNCF001-14.31818M
NDK America, Inc.
CRYSTAL 14.31818MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LNCF001-14.31818M
NDK America, Inc.
CRYSTAL 14.31818MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LNCF001-14.31818M |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 14.31818 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] [custom] | 158 °F |
| Operating Temperature [Min] [custom] | -10 °C |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 4.5 mm |
| Size / Dimension [y] | 0.177 " |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| 10 | $ 0.72 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 0.83 | ||
| 10 | $ 0.72 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.56 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
| 2000 | $ 0.51 | |||
| 3000 | $ 0.50 | |||
| 5000 | $ 0.48 | |||
| 7000 | $ 0.47 | |||
| 10000 | $ 0.46 | |||
Description
General part information
LNCF001-14.31818M
14.31818 MHz ±50ppm Crystal 8pF 50 Ohms 2-SMD, No Lead
Documents
Technical documentation and resources
