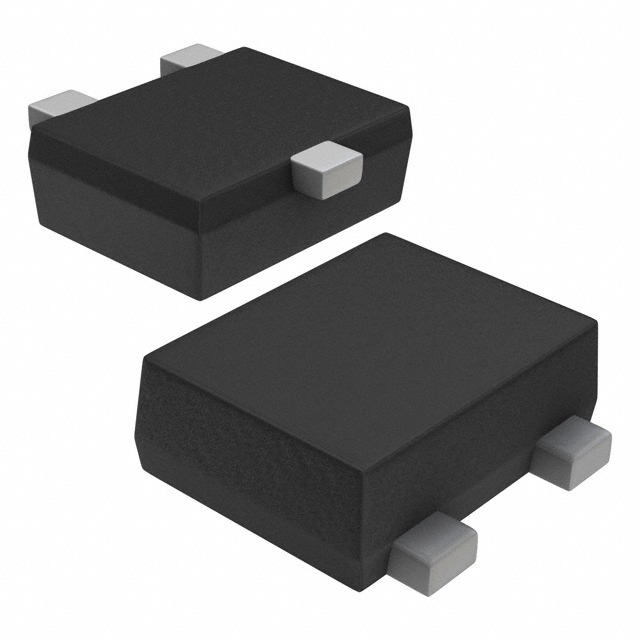

BZB984-C11,115
ActiveFreescale Semiconductor - NXP
DIODE ZENER ARRAY 11V SOT663
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZB984-C11,115
ActiveFreescale Semiconductor - NXP
DIODE ZENER ARRAY 11V SOT663
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZB984-C11,115 |
|---|---|
| Configuration | 1 Pair Common Anode |
| Current - Reverse Leakage @ Vr | 100 nA |
| Impedance (Max) (Zzt) | 10 Ohms |
| Mounting Type | Surface Mount |
| Package / Case | SOT-663 |
| Power - Max [Max] | 265 mW |
| Supplier Device Package | SOT-663 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 11 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 6788 | $ 0.04 | |
| Tape & Reel (TR) | 4000 | $ 0.06 | ||
| 8000 | $ 0.06 | |||
| 12000 | $ 0.05 | |||
| 28000 | $ 0.05 | |||
| 100000 | $ 0.04 | |||
| 200000 | $ 0.04 | |||
Description
General part information
BZB984-C11,115
Zener Diode Array 1 Pair Common Anode 11 V 265 mW ±5% SOT-663
