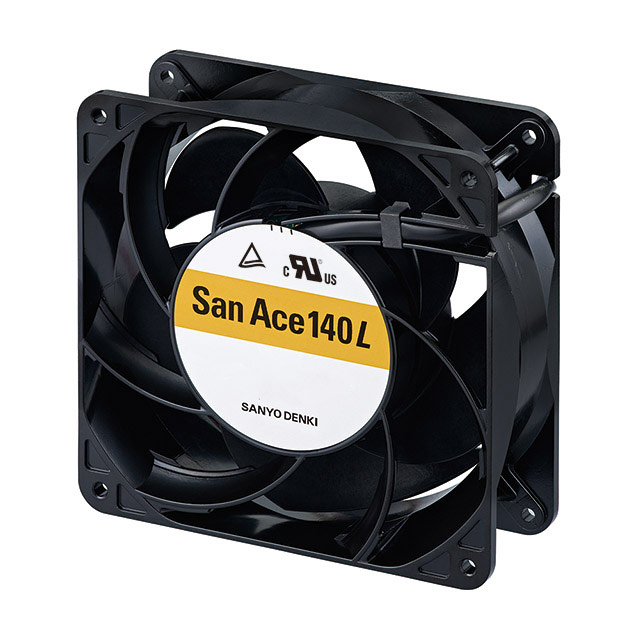

9LG1448P1M001

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 140X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	9LG1448P1M001

Air Flow	130 CFM
Air Flow	3.64 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	180000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	46 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	7.2 W
RPM	3300 RPM
Size / Dimension [x]	140 mm
Size / Dimension [z]	140 mm
Static Pressure	169.4 Pa
Static Pressure	0.68 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	55.2 VDC
Voltage Range [Min]	40.8 VDC
Weight	1.4 lbs
Weight	650 g
Width [y]	38 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	14	$ 107.96

General part information

Fan Tubeaxial 48VDC Square - 140mm L x 140mm H Ball 130.0 CFM (3.64mł/min) 4 Wire Leads
