74LVC1G3157DW-7
ActiveDiodes Inc
ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
74LVC1G3157DW-7
ActiveDiodes Inc
ANALOGUE SW, SPDT, -40 TO 125DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 74LVC1G3157DW-7 |
|---|---|
| -3db Bandwidth | 300 MHz |
| Channel Capacitance (CS(off), CD(off)) [custom] | 6 pF |
| Channel Capacitance (CS(off), CD(off)) [custom] | 6 pF |
| Channel-to-Channel Matching (ΔRon) | 250 mOhm |
| Charge Injection | 7 pC |
| Crosstalk | -42 dB |
| Current - Leakage (IS(off)) (Max) [Max] | 1 µA |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) [Max] | 10 Ohms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

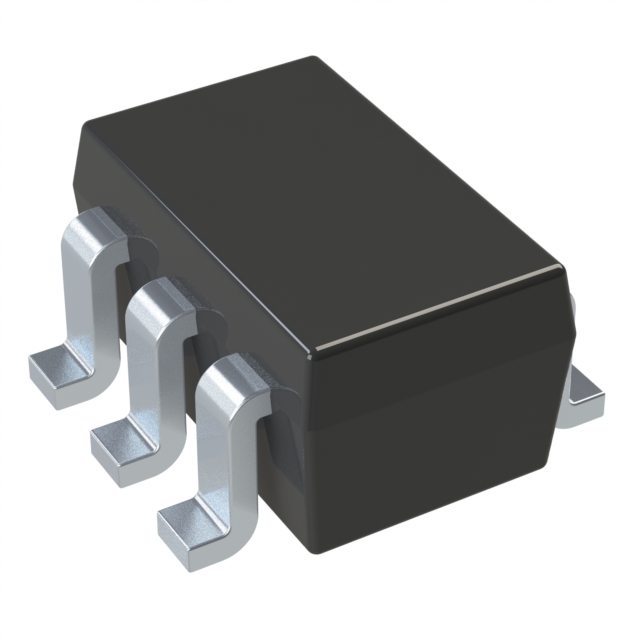

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Switch Circuit | SPDT |
| Switch Time (Ton, Toff) (Max) [custom] | 4 ns |
| Switch Time (Ton, Toff) (Max) [custom] | 7.5 ns |
| Voltage - Supply, Single (V+) [Max] | 5.5 V |
| Voltage - Supply, Single (V+) [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 3000 | $ 0.05 | |
| 9000 | $ 0.04 | |||
| 18000 | $ 0.03 | |||
| Digikey | Cut Tape (CT) | 1 | $ 0.38 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.26 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.38 | ||
| 10 | $ 0.31 | |||
| 25 | $ 0.26 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.07 | |||
| Tape & Reel (TR) | 3000 | $ 0.07 | ||
| 6000 | $ 0.06 | |||
| 15000 | $ 0.05 | |||
| 30000 | $ 0.05 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.37 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.16 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
Description
General part information
74LVC1G3157DW-7
The 74LVC1G3157 is a single-pole double-throw analog switch. The device is designed for operation with a power supply range of 1.65V to 5.5V. The bidirectional switch can handle signal amplitudes between Vcc and Ground. The OFF state impedance of the switch is typically 50 megaohms while the ON state is typically 6 ohms.
