Technical Specifications
Parameters and characteristics for this part
| Specification | J3455T-IM-A_NO-LVDS |
|---|---|
| Cooling Type | Fan |
| Core Processor | Intel®J3455 |
| Ethernet | 2, 100 Mbps, 10 Mbps, 1000 Mbps |
| Ethernet | RJ45 |
| Expansion Site/Bus | SATA, LVDS, VGA, Mini-PCIe, PCIe, LAN, mSATA, M.2 |
| Form Factor | mini-ITX |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed [custom] | 8 GB |
| RAM Capacity/Installed [custom] | 0 GB |
| RS-232 (422, 485) | 1 |
| Size / Dimension [x] | 170 mm |
| Size / Dimension [x] | 6.693 " |
| Size / Dimension [y] | 170 mm |
| Size / Dimension [y] | 6.693 " |
| Storage Interface | SPI, SATA (2), M.2, Mini PCIe/mSATA |
| USB | USB 2.0 (6), USB 3.0 (4) |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

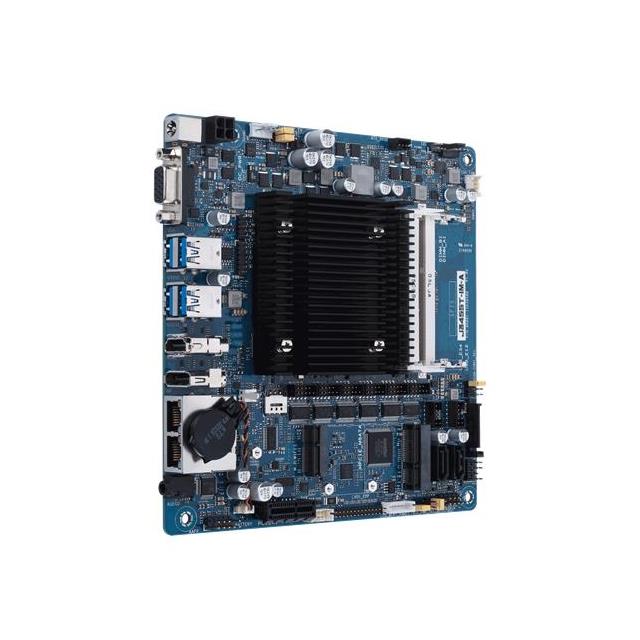

J3455T-IM-A_NO-LVDS
Single Board Computer Core 8GB/0GB RAM Intel®J3455
