B39511B3426U410
ObsoleteQualcomm (RF front-end (RFFE) filters)
B39511B3426U410
Deep-Dive with AI
Search across all available documentation for this part.
B39511B3426U410
ObsoleteQualcomm (RF front-end (RFFE) filters)
B39511B3426U410
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B39511B3426U410 |
|---|---|
| Applications | ISM |
| Bandwidth | 10 MHz |
| Frequency - Center | 505 MHz |
| Insertion Loss | 1.7 dB |
| Mounting Type | Surface Mount |

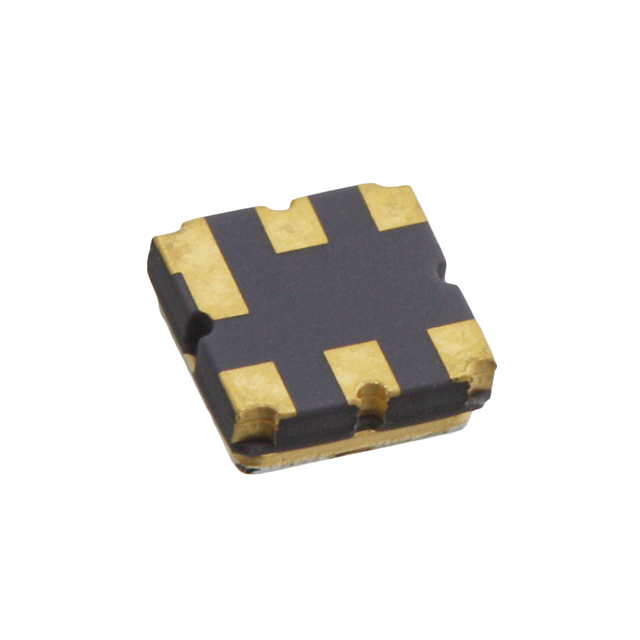

| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
B39511B3426U410
505MHz Frequency ISM RF SAW Filter (Surface Acoustic Wave) 1.7dB 10MHz Bandwidth 6-SMD, No Lead
Documents
Technical documentation and resources
No documents available
