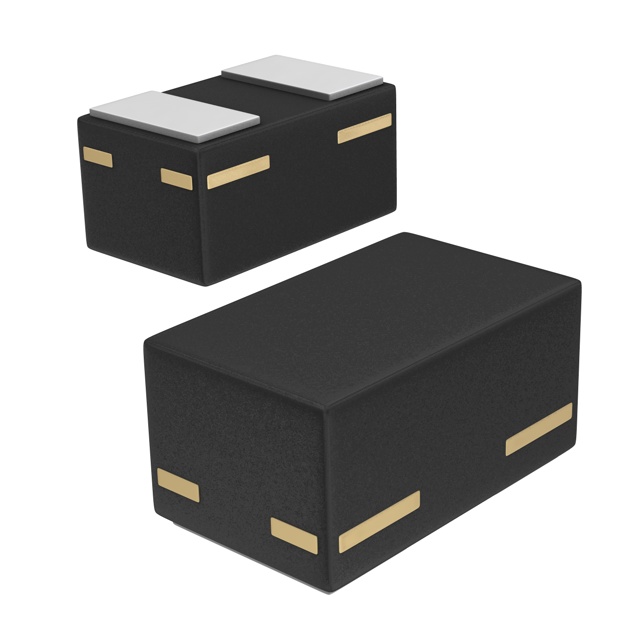

BZX884-C36,315
ActiveFreescale Semiconductor - NXP
DIODE ZENER 36V 250MW DFN1006-2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BZX884-C36,315
ActiveFreescale Semiconductor - NXP
DIODE ZENER 36V 250MW DFN1006-2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BZX884-C36,315 |
|---|---|
| Current - Reverse Leakage @ Vr | 50 nA |
| Grade | Automotive |
| Impedance (Max) (Zzt) [Max] | 90 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | SOD-882 |
| Power - Max [Max] | 250 mW |
| Qualification | AEC-Q100 |
| Supplier Device Package | DFN1006-2 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.12 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.07 | |||
| 2000 | $ 0.06 | |||
| 5000 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.03 | ||
Description
General part information
BZX884-C36,315
Zener Diode 36 V 250 mW ±5% Surface Mount DFN1006-2
Documents
Technical documentation and resources
