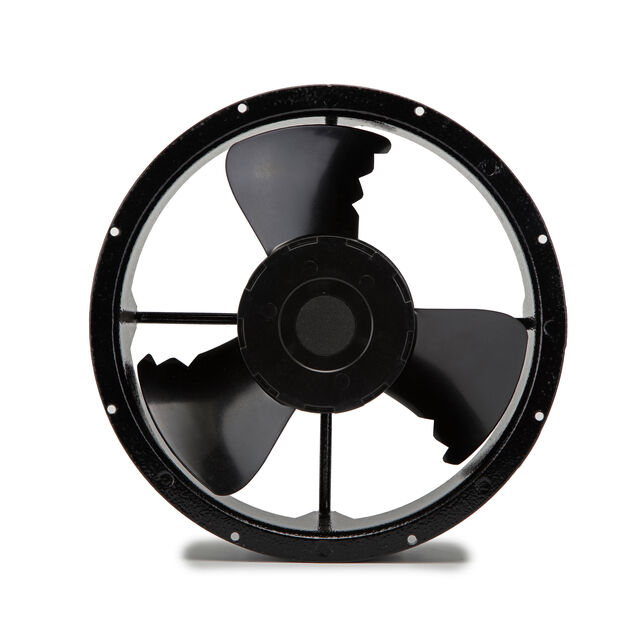

17000298A
ActiveComair Rotron
FAN AXL 254X88.9MM CD24B7 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17000298A
ActiveComair Rotron
FAN AXL 254X88.9MM CD24B7 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17000298A |
|---|---|
| Air Flow | 15.4 mł/min |
| Air Flow | 550 CFM |
| Approval Agency | cUR, UL, CE |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.2 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection, Auto Restart |
| Lifetime @ Temp. | 60000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 49.1 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 29 W |
| RPM | 1650 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 28 VDC |
| Voltage Range [Min] | 12 VDC |
| Width [y] | 88.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 92.09 | |
| 10 | $ 75.48 | |||
Description
General part information
17000298A
Fan Tubeaxial 24VDC Round - 254mm Dia Ball 550.0 CFM (15.40m³/min) 3 Wire Leads
