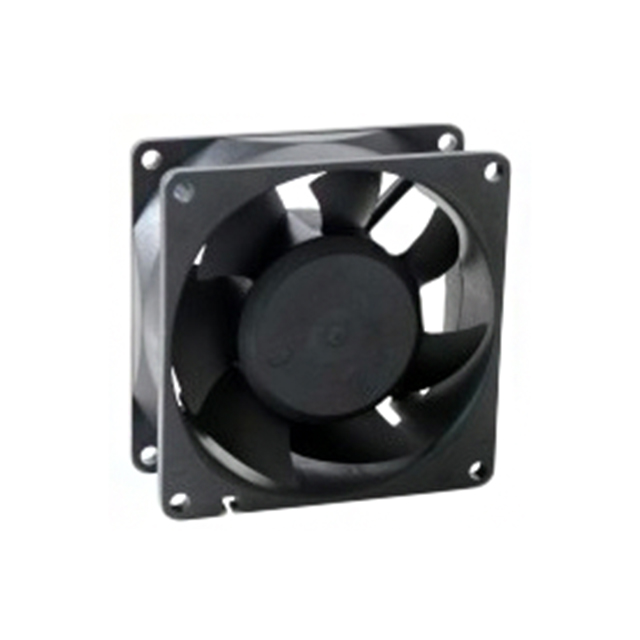

MR8032H12B1+6-FSR - MR8032

MR8032H12B1+6-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDC Lead Wire Specs+1
MR8032H12B1+6-FSR - MR8032

MR8032H12B1+6-FSR

Active
Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheetDC Lead Wire Specs+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMR8032H12B1+6-FSR
Air Flow2.04 m³/min
Air Flow73 CFM
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Current Rating (Amps)0.7 A
Fan TypeTubeaxial
FeaturesAuto Restart, Speed Sensor (Tach), PWM Control
Material - BladePlastic
Material - FramePlastic
Noise48.6 dB(A)
RPM6000 RPM
Size / Dimension [x]80 mm
Size / Dimension [y]80 mm
Static Pressure190 Pa
Static Pressure0.763 in H2O
Termination4 Wire Leads
Voltage - Rated12 VDC
Weight0.32 lb
Weight145.15 g
Width [y]32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 100$ 14.57

Description

General part information

MR8032H12B1+6-FSR

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 73.0 CFM (2.04m³/min) 4 Wire Leads
