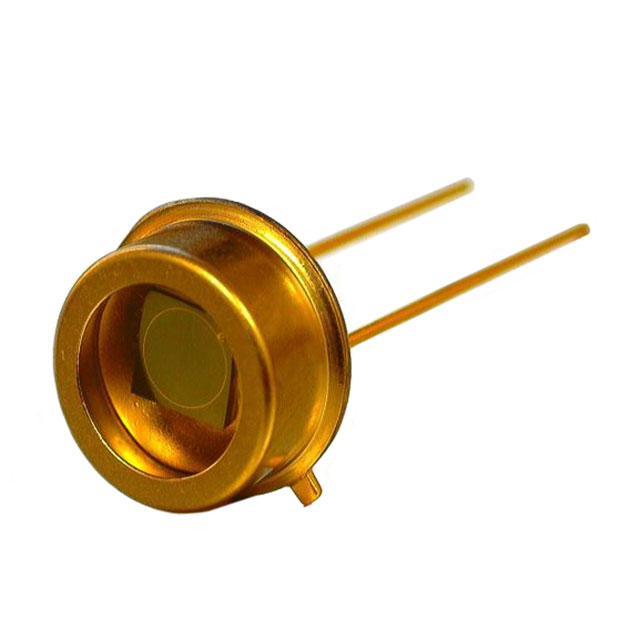

MTPD2601T8-150
ActiveMarktech Optoelectronics
SENSOR PHOTODIOD 800-2600NM TO39
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTPD2601T8-150
ActiveMarktech Optoelectronics
SENSOR PHOTODIOD 800-2600NM TO39
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTPD2601T8-150 |
|---|---|
| Active Area | 1.5 mm² |
| Current - Dark (Typ) | 300 µA |
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-39-2 Metal Can |
| Responsivity @ nm | 1.24 A/W |
| Spectral Range [Max] | 2600 nm |
| Spectral Range [Min] | 800 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1 V |
| Wavelength [Max] | 2600 nm |
| Wavelength [Min] | 800 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.03 | |
| 10 | $ 13.75 | |||
| 100 | $ 11.54 | |||
| 500 | $ 10.80 | |||
Description
General part information
MTPD2601T8-150
Photodiode 800nm ~ 2600nm TO-39-2 Metal Can
Documents
Technical documentation and resources
