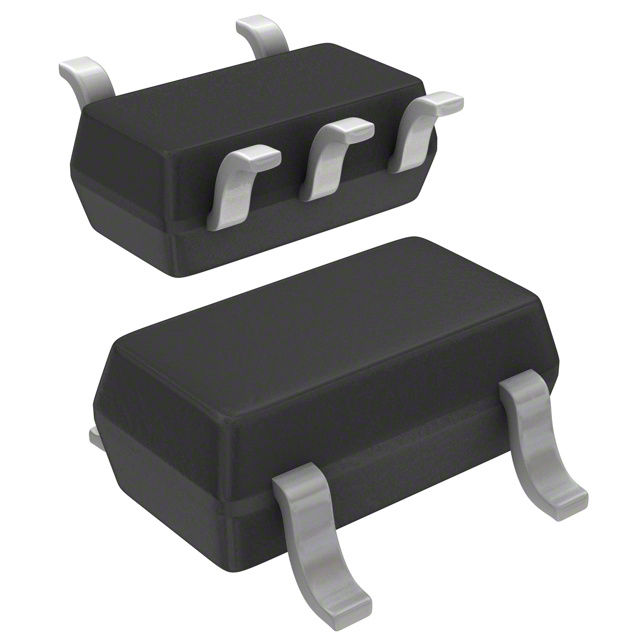

SPX5205M5-L-1-8/TR
ObsoleteMaxLinear, Inc.
IC REG LINEAR 1.8V 150MA SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
SPX5205M5-L-1-8/TR
ObsoleteMaxLinear, Inc.
IC REG LINEAR 1.8V 150MA SOT23-5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SPX5205M5-L-1-8/TR |
|---|---|
| Control Features | Enable |
| Current - Output | 150 mA |
| Current - Quiescent (Iq) | 5 µA |
| Current - Supply (Max) [Max] | 2.5 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-74A, SOT-753 |
| Protection Features | Over Temperature, Reverse Polarity, Over Current |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| Digi-Reel® | 1 | $ 0.49 | ||
| Tape & Reel (TR) | 3000 | $ 0.17 | ||
| 6000 | $ 0.16 | |||
| 15000 | $ 0.15 | |||
| 30000 | $ 0.14 | |||
Description
General part information
SPX5205M5-L-1-8/TR
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Documents
Technical documentation and resources
No documents available
