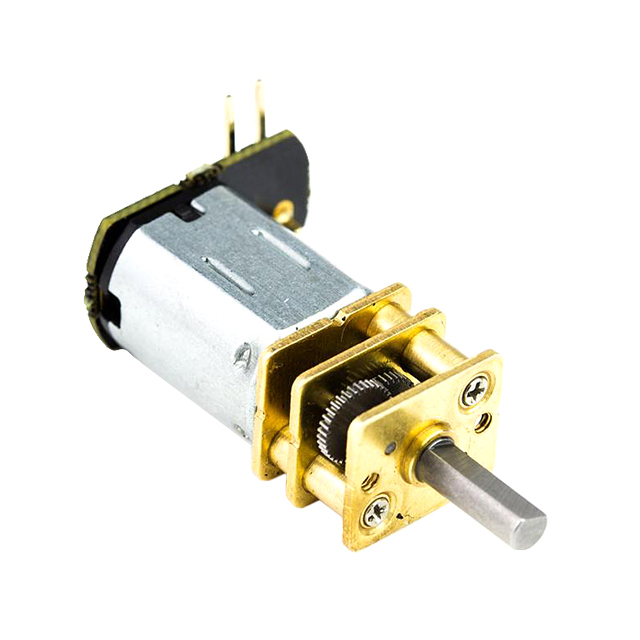

GEARMOTOR 420 RPM 6V MICRO METAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
COM0805
ActivePimoroni Ltd
GEARMOTOR 420 RPM 6V MICRO METAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | COM0805 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Gear Reduction Ratio | 50 |
| Length - Shaft and Bearing | 9 mm |
| Length - Shaft and Bearing [x] | 0.354 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 9 mm |
| Mounting Hole Spacing | 0.354 in |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Size / Dimension [x] | 10 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [y] | 12 mm |
| Size / Dimension [y] | 0.472 " |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 9.8 mNm |
| Torque - Rated (oz-in / mNm) | 1.388 oz-in |
| Type | DC Motor |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.62 | |
Description
General part information
COM0805
Brushed DC Motor Gearmotor 420 RPM 6VDC
