AM1DS-1515SH30JZ
Obsoleteaimtec

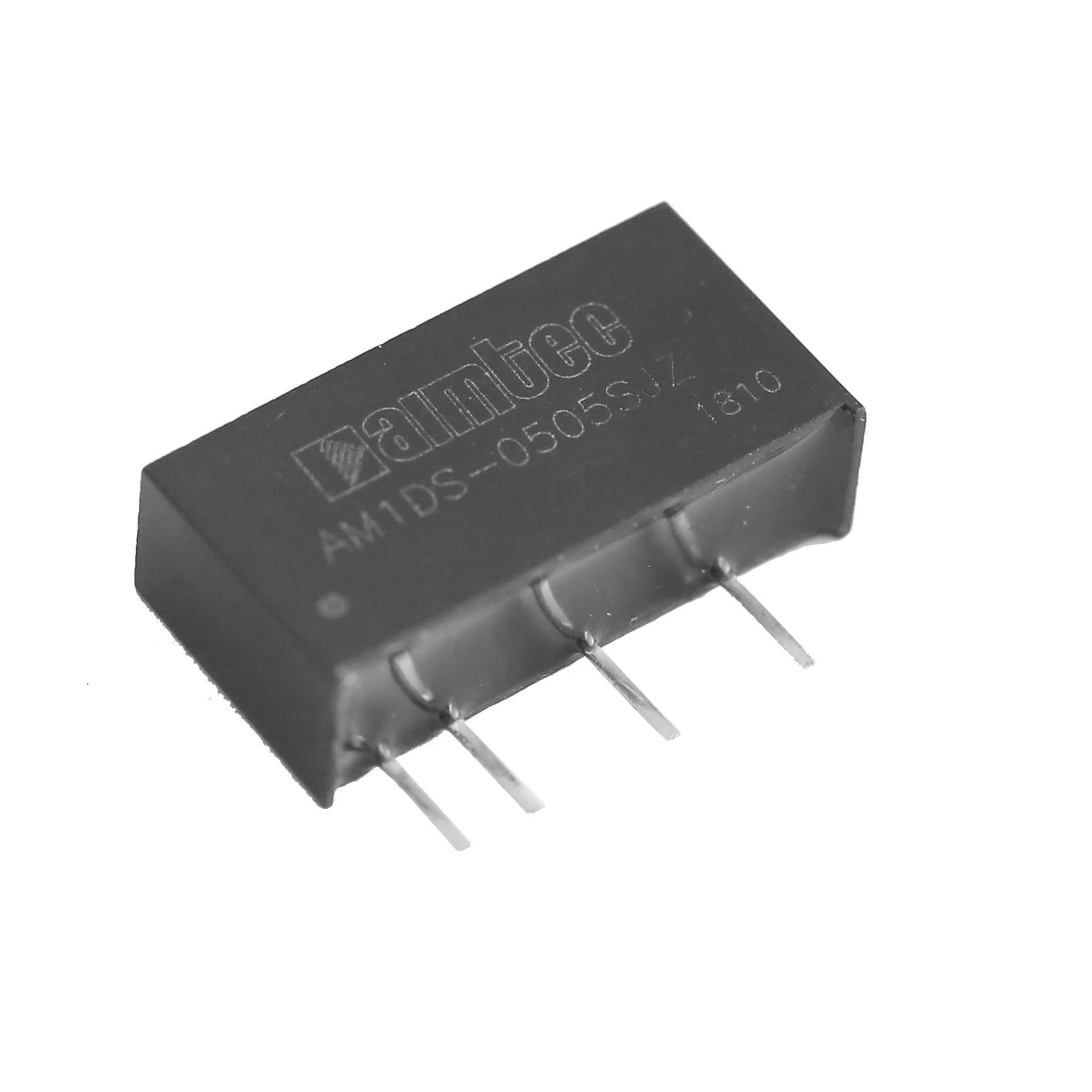

MODULE DC-DC 15VIN 1-OUT 15V 0.067A 1W 4-PIN SIP MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1DS-1515SH30JZ
Obsoleteaimtec
MODULE DC-DC 15VIN 1-OUT 15V 0.067A 1W 4-PIN SIP MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1DS-1515SH30JZ |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 81 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.7 mm |
| Size / Dimension [y] | 0.24 " |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 16.5 V |
| Voltage - Input (Min) [Min] | 13.5 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AM1DS-1515SH30JZ
Isolated Module DC DC Converter 1 Output 15V 67mA 13.5V - 16.5V Input
Documents
Technical documentation and resources
