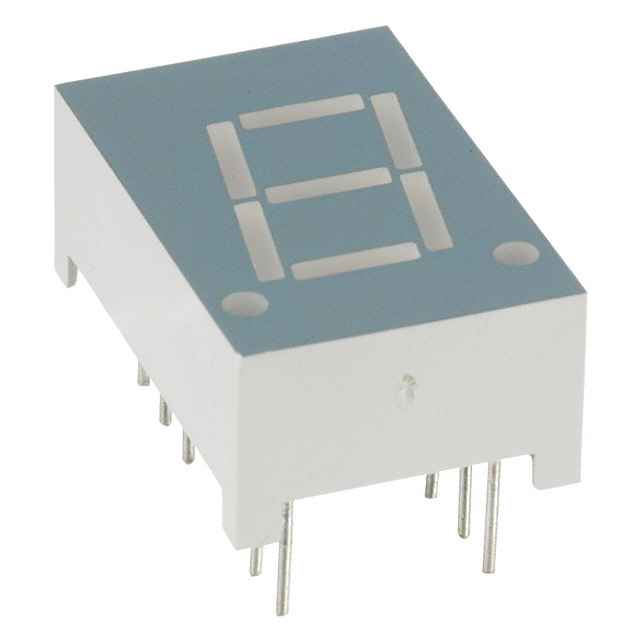

LDS-A413RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.43" SGL YLW 14DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-A413RI
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.43" SGL YLW 14DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-A413RI |
|---|---|
| Color | Yellow |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size [custom] | 0.43 " |
| Digit/Alpha Size [custom] | 10.92 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 3.9 mcd |
| Number of Characters [custom] | 1 |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 7.8 mm |
| Size / Dimension [x] | 0.307 in |
| Size / Dimension [y] | 12.6 mm |
| Size / Dimension [y] | 0.496 in |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.748 " |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 585 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDS-A413RI
Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 10mA 0.748" H x 0.496" W x 0.307" D (19.00mm x 12.60mm x 7.80mm) 14-DIP (0.300", 7.62mm), 11 Leads
Documents
Technical documentation and resources
No documents available
