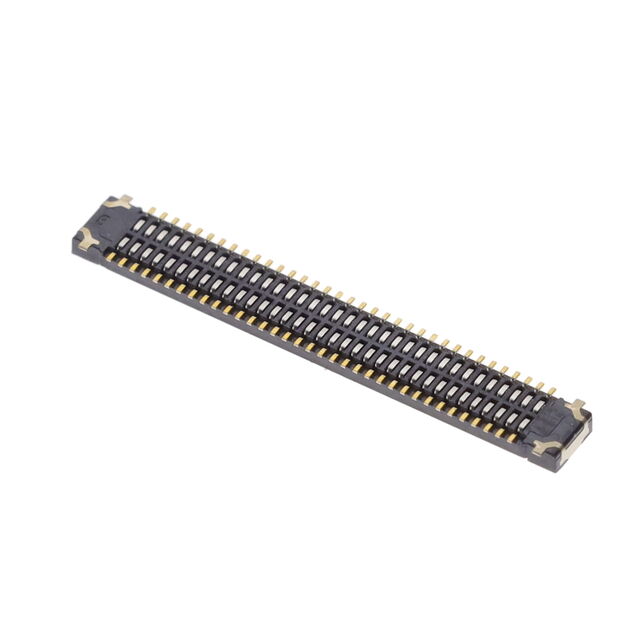

AXE570127
ActivePanasonic Electric Works
CONN SOCKET 70POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXE570127
ActivePanasonic Electric Works
CONN SOCKET 70POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXE570127 |
|---|---|
| Connector Type | Socket, Center Strip Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board [z] | 0.03 in |
| Height Above Board [z] | 0.75 mm |
| Mated Stacking Heights | 1 mm, 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.29 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.27 | |||
| 2500 | $ 1.19 | |||
| Digi-Reel® | 1 | $ 2.29 | ||
| 10 | $ 1.99 | |||
| 25 | $ 1.91 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.27 | |||
| 2500 | $ 1.19 | |||
| Tape & Reel (TR) | 5000 | $ 1.05 | ||
Description
General part information
AXE570127
70 Position Connector Socket, Center Strip Contacts Surface Mount Gold
