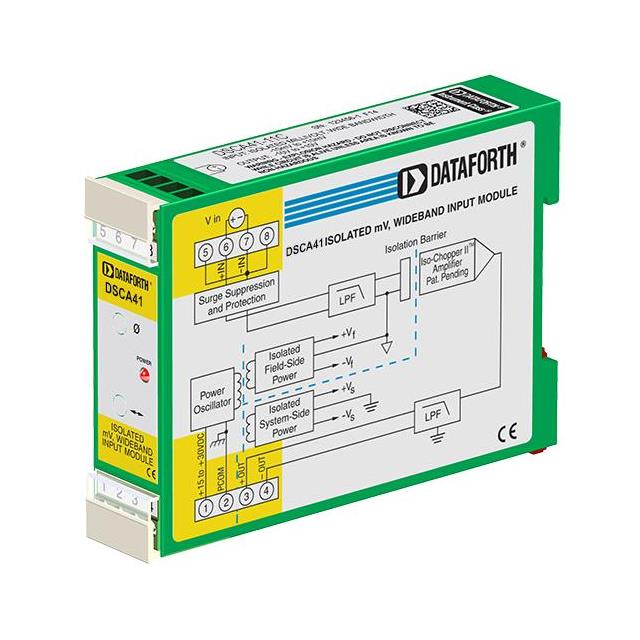

DSCA41-11C
ActiveDATAFORTH
VOLTAGE IN MODULE WIDE BW DIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSCA41-11C
ActiveDATAFORTH
VOLTAGE IN MODULE WIDE BW DIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCA41-11C |
|---|---|
| Input Range (Current, Voltage) [Max] | 1 V |
| Input Range (Current, Voltage) [Min] | 0 mV |
| Input Type | Voltage |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Range [Max] | 20 mA |
| Output Range [Min] | 4 mA |
| Output Type | Current |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 335.00 | |
Description
General part information
DSCA41-11C
VOLTAGE IN MODULE WIDE BW DIN
Documents
Technical documentation and resources
