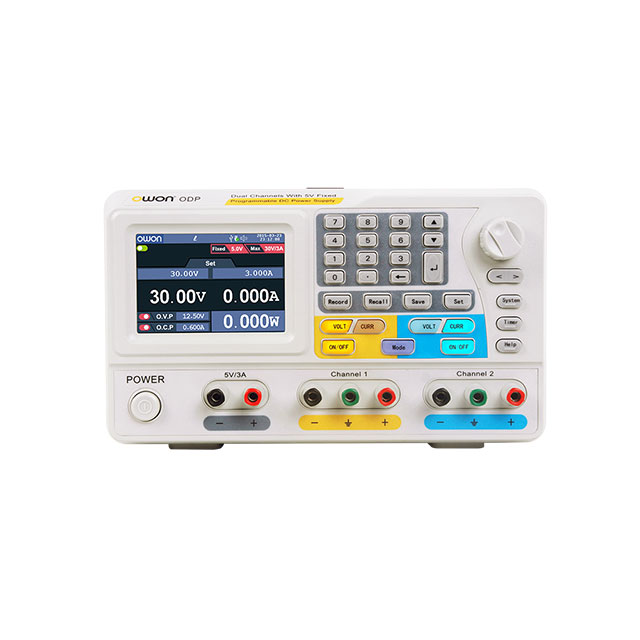

ODP3032
ActiveOwon Technology Lilliput Electronics (USA) Inc
PWR SUP 0-30V 195W 0-3A
Deep-Dive with AI
Search across all available documentation for this part.
ODP3032
ActiveOwon Technology Lilliput Electronics (USA) Inc
PWR SUP 0-30V 195W 0-3A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ODP3032 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.1% + 3mA, 0.05% + 3mV |
| Current - Output | 3 A |
| Current - Output [Max] | 3 A |
| Current - Output [Min] | 0 A |
| Current Regulation - Line | 3 mA |
| Current Regulation - Load | 3 mA |
| Display Type | LCD |
| Number of Outputs | 3 |
| Power (Watts) | 195 W |
| Ripple | 3 mA, 2 mV, 0.3 mV |
| Size / Dimension [x] | 14.094 " |
| Size / Dimension [x] | 358 mm |
| Size / Dimension [y] | 9.843 in |
| Size / Dimension [y] | 250 mm |
| Size / Dimension [z] | 158 mm |
| Size / Dimension [z] | 6.22 in |
| Type | Bench (AC to DC) |
| Voltage - Output | 5 V |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 0 VDC |
| Voltage - Supply [Max] | 220 VAC |
| Voltage - Supply [Min] | 110 VAC |
| Voltage Regulation - Load | 3 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 479.00 | |
Description
General part information
ODP3032
0 ~ 30V, 5V Output Bench (AC to DC) Power Supply LCD 0 ~ 3A, 3A Output 195W Features Memory, Programmable, RS232 and USB Interface
Documents
Technical documentation and resources
No documents available
