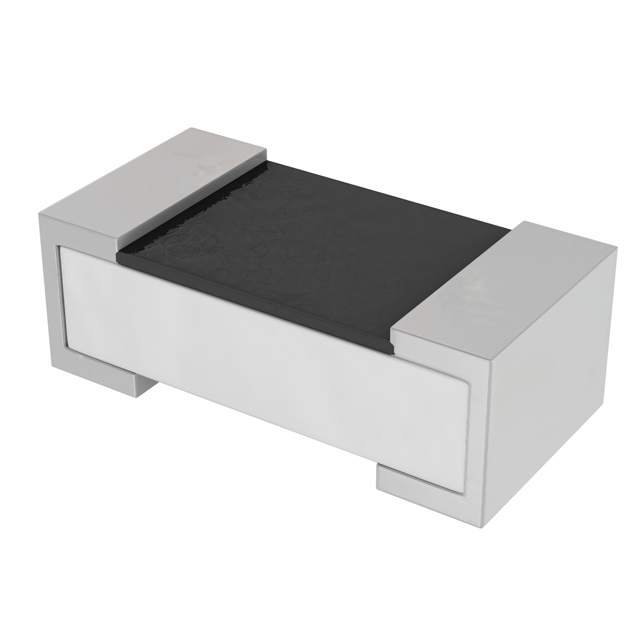

RC0402F2673CS
ActiveSamsung Electro-Mechanics
RES 267K OHM 1% 1/32W 01005
Deep-Dive with AI
Search across all available documentation for this part.
RC0402F2673CS
ActiveSamsung Electro-Mechanics
RES 267K OHM 1% 1/32W 01005
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RC0402F2673CS |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant |
| Height - Seated (Max) [Max] | 0.006 in |
| Height - Seated (Max) [Max] | 0.15 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 01005 |
| Package / Case | 0402 Metric |
| Power (Watts) | 0.03125 W |
| Power (Watts) | 30 mW |
| Resistance | 267 kOhms |
| Size / Dimension [x] | 0.016 in |
| Size / Dimension [x] | 0.4 mm |
| Size / Dimension [y] | 0.008 in |
| Size / Dimension [y] | 0.2 mm |
| Supplier Device Package | 01005 |
| Temperature Coefficient | 250 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000000 | $ 0.03 | |
Description
General part information
RC0402F2673CS
267 kOhms ±1% 0.03W, 1/32W Chip Resistor 01005 (0402 Metric) Moisture Resistant Thick Film
