CGSTAPE-9998-1" x 36 yds
ActiveCGS Tape
TAPE ALUMINUM FOIL 1"X36YDS
Deep-Dive with AI
Search across all available documentation for this part.
CGSTAPE-9998-1" x 36 yds
ActiveCGS Tape
TAPE ALUMINUM FOIL 1"X36YDS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CGSTAPE-9998-1" x 36 yds |
|---|---|
| Adhesive | Conductive Acrylic |
| Backing, Carrier | Dead Soft, Aluminum |
| Length | 36 yd |
| Length | 32.9 m |
| Length | 108 ft |
| Tape Type | Aluminum Foil |
| Temperature Range [Max] | 100 °C |
| Temperature Range [Min] | -40 °F |
| Thickness | 0.0032 in |
| Thickness | 3.2 mils |
| Thickness | 0.081 mm |
| Thickness - Adhesive | 0.03 mm |
| Thickness - Adhesive | 0.0012 in |
| Thickness - Adhesive | 1.2 mils |
| Thickness - Backing, Carrier | 0.002 " |
| Thickness - Backing, Carrier | 0.051 mm |
| Thickness - Backing, Carrier | 2 mils |
| Width [x] | 25.4 mm |
| Width [x] | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.85 | |
| 5 | $ 22.64 | |||
| 10 | $ 21.51 | |||
| 25 | $ 20.43 | |||
| 50 | $ 19.41 | |||
| 100 | $ 18.44 | |||
Description
General part information
CGSTAPE-9998-1" x 36 yds

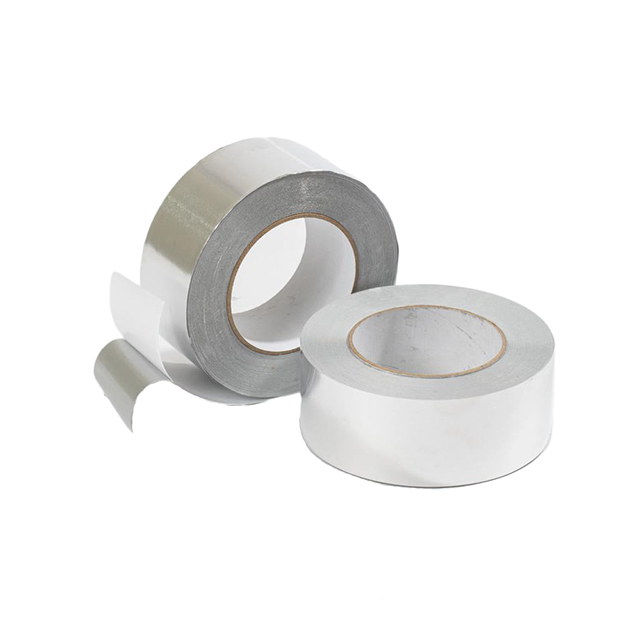

Aluminum Foil Tape Conductive Acrylic Adhesive 1.00" (25.40mm) X 108' (32.9m) 36 yds
Documents
Technical documentation and resources
No documents available
