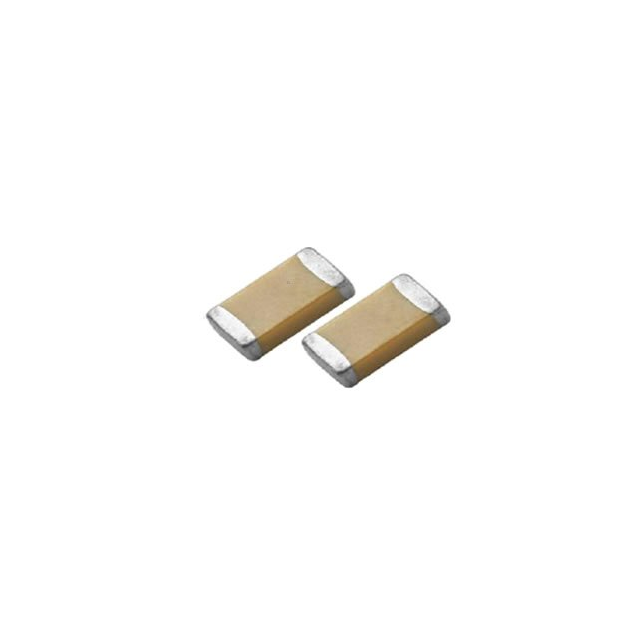

HC1206XR103K102
ActiveMeritek
CAP CER 10000PF 1KV X7R 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HC1206XR103K102
ActiveMeritek
CAP CER 10000PF 1KV X7R 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HC1206XR103K102 |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Features | High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.3 mm, 0.13 in |
| Size / Dimension [y] | 0.063 in, 1.6 mm |
| Temperature Coefficient | X7R |
| Thickness (Max) [Max] | 1.35 mm |
| Thickness (Max) [Max] | 0.053 in |
| Tolerance | 10 % |
| Voltage - Rated | 1 kV |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.03 | |
| 12000 | $ 0.03 | |||
| 24000 | $ 0.03 | |||
Description
General part information
HC1206XR103K102
10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1206 (3216 Metric)
