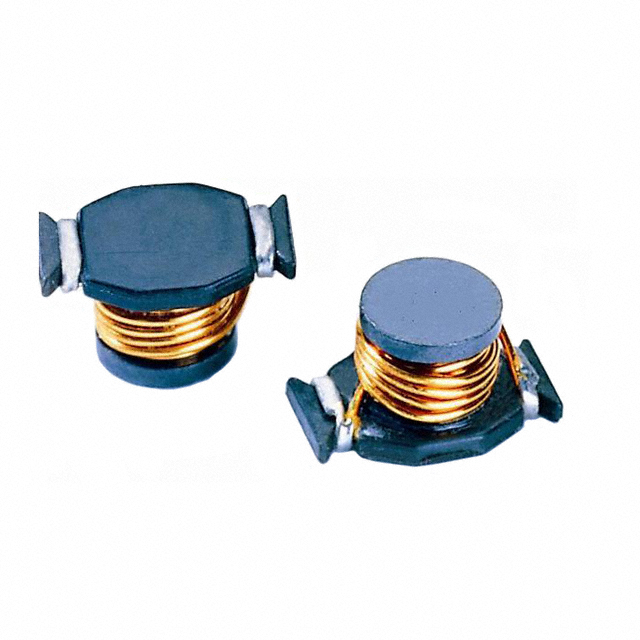

SC1813FH-330
ActiveSignal Transformer
FIXED IND 33UH 920MA 350MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
SC1813FH-330
ActiveSignal Transformer
FIXED IND 33UH 920MA 350MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SC1813FH-330 |
|---|---|
| Current - Saturation (Isat) | 900 mA |
| Current Rating (Amps) | 920 mA |
| DC Resistance (DCR) | 350 mOhm |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.35 in, 8.89 mm |
| Size / Dimension [y] | 6.1 mm, 0.24 in |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1600 | $ 0.52 | |
Description
General part information
SC1813FH-330
33 µH Unshielded Wirewound Inductor 920 mA 350mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
