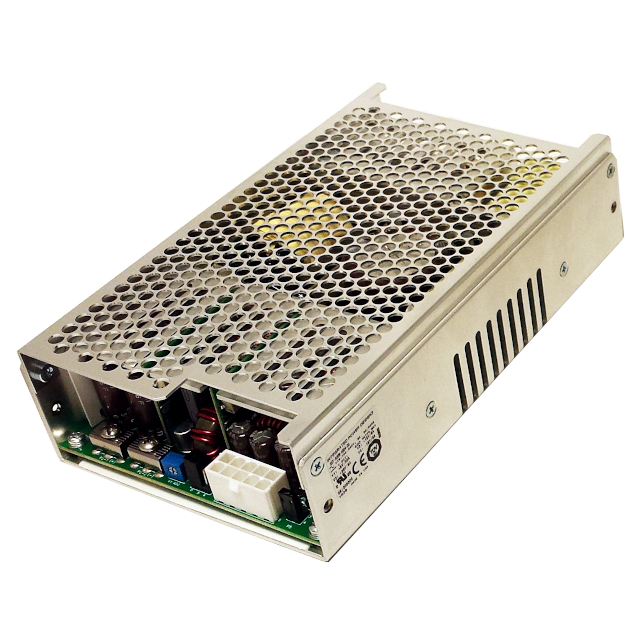

101185404CHCO
ActiveIntegrated Power Designs
AC/DC CNVRT 24V -28V +/-15V 400W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
101185404CHCO
ActiveIntegrated Power Designs
AC/DC CNVRT 24V -28V +/-15V 400W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 101185404CHCO |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, cURus, CE, UKCA |
| Current - Output 1 | 12.5 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | 5 A |
| Current - Output 4 | 5 A |
| Efficiency | 87 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Size / Dimension [x] | 180.3 mm |
| Size / Dimension [x] | 7.1 " |
| Size / Dimension [y] | 106.2 mm |
| Size / Dimension [y] | 4.18 in |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | -28 V |
| Voltage - Output 3 | 15 V |
| Voltage - Output 4 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 450.17 | |
| 25 | $ 418.30 | |||
| 100 | $ 390.97 | |||
Description
General part information
101185404CHCO
Enclosed AC DC Converters 4 Output 24V -28V 15V -15V 100 ~ 240 VAC Input
