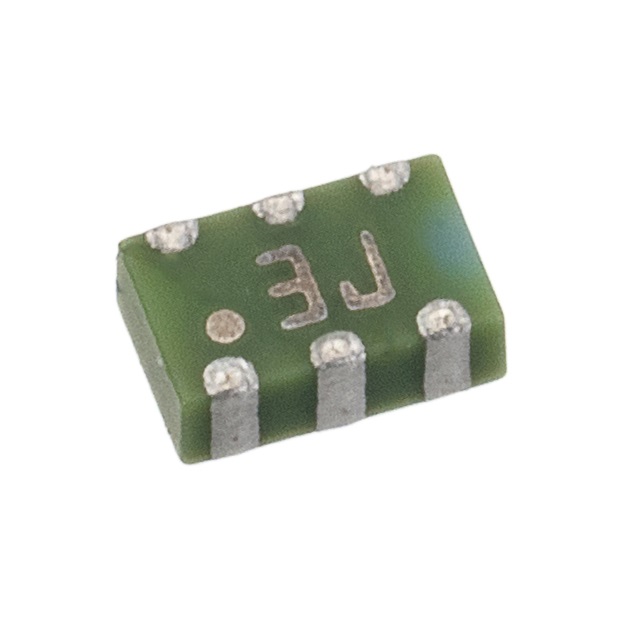

HMD8703D-HYB3500
ActiveSOSHIN ELECTRIC CO., LTD.
RF HYBRID COUPLER GENERAL PURPOS
Deep-Dive with AI
Search across all available documentation for this part.
HMD8703D-HYB3500
ActiveSOSHIN ELECTRIC CO., LTD.
RF HYBRID COUPLER GENERAL PURPOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HMD8703D-HYB3500 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Dual Band, Dual Path |
| Insertion Loss | 0.19 dB |
| Isolation | 34.1 dB, 23.5 dB, 25.3 dB |
| Package / Case | 0805 (2012 Metric) |
| Package / Case | 6 Leads |
| Power - Max [Max] | 4 W |
| Return Loss | 25.2 dB |
| Supplier Device Package | 0805 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.82 | |
| 10 | $ 1.33 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.12 | |||
| Digi-Reel® | 1 | $ 1.82 | ||
| 10 | $ 1.33 | |||
| 25 | $ 1.30 | |||
| 50 | $ 1.27 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.12 | |||
| Tape & Reel (TR) | 500 | $ 0.97 | ||
| 1000 | $ 0.91 | |||
| 1500 | $ 0.88 | |||
| 2500 | $ 0.84 | |||
| 3500 | $ 0.82 | |||
| 5000 | $ 0.79 | |||
| 12500 | $ 0.75 | |||
Description
General part information
HMD8703D-HYB3500
RF Directional Coupler General Purpose 3.07GHz ~ 4GHz 4W 0805 (2012 Metric), 6 PC Pad
