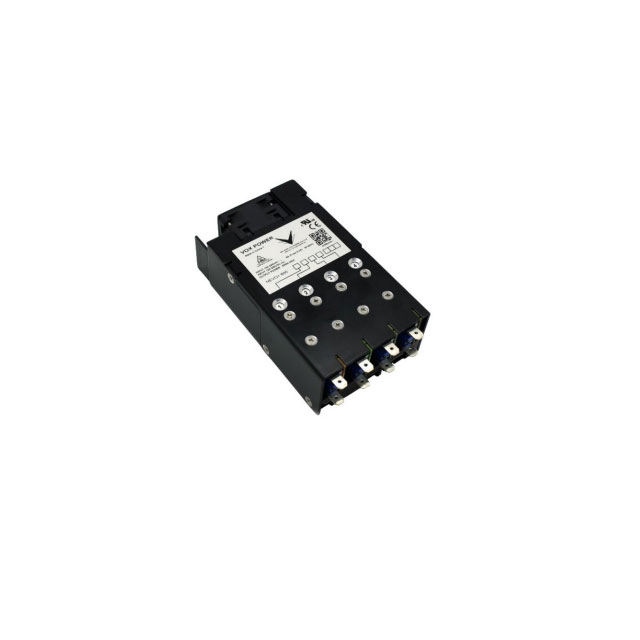

NEVO+600S-4251-DK000
ActiveVox Power Ltd.
AC/DC CNVT 48V 3X12V 5V 425W
Deep-Dive with AI
Search across all available documentation for this part.
NEVO+600S-4251-DK000
ActiveVox Power Ltd.
AC/DC CNVT 48V 3X12V 5V 425W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NEVO+600S-4251-DK000 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, IEC, UL, CSA |
| Current - Output 1 | 3.75 A |
| Current - Output 2 | 15 A |
| Current - Output 3 | 5 A |
| Current - Output 4 | 5 A |
| Current - Output 5 | 25 A |
| Efficiency | 86 % |
| Features | Adjustable Output, Universal Input, Load Sharing, Remote Sense, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 425 W |
| Size / Dimension [x] | 3.06 " |
| Size / Dimension [x] | 77.7 mm |
| Size / Dimension [y] | 3.06 " |
| Size / Dimension [y] | 77.7 mm |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | 12 V |
| Voltage - Output 4 | 12 V |
| Voltage - Output 5 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 15 | $ 460.31 | |
Description
General part information
NEVO+600S-4251-DK000
Enclosed AC DC Converters 5 Output 48V 12V 12V 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
