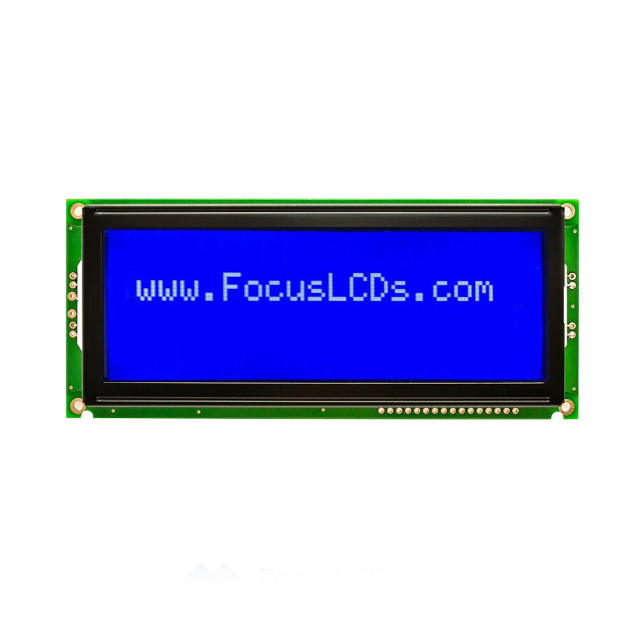

C204B-BW-LW65
ActiveFocus LCDs
20X4 STN BLUE CHARACTER LCD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C204B-BW-LW65 |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 4.84 mm |
| Character Size [z] | 9.22 mm |
| Controller Type | ST7066U |
| Display Format [x] | 20 |
| Display Format [y] | 4 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.92 mm |
| Dot Size [y] | 1.1 mm |
| Interface | Parallel |
| Number of Characters | 80 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 146 mm |
| Outline L x W x H [y] | 62.5 mm |
| Outline L x W x H [z] | 14.5 mm |
| Text Color | White |
| Viewing Area [x] | 123 mm |
| Viewing Area [y] | 42.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.60 | |
| 10 | $ 17.67 | |||
| 25 | $ 16.79 | |||
Description
General part information
C204B-BW-LW65
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 146.00mm x 62.50mm x 14.50mm
