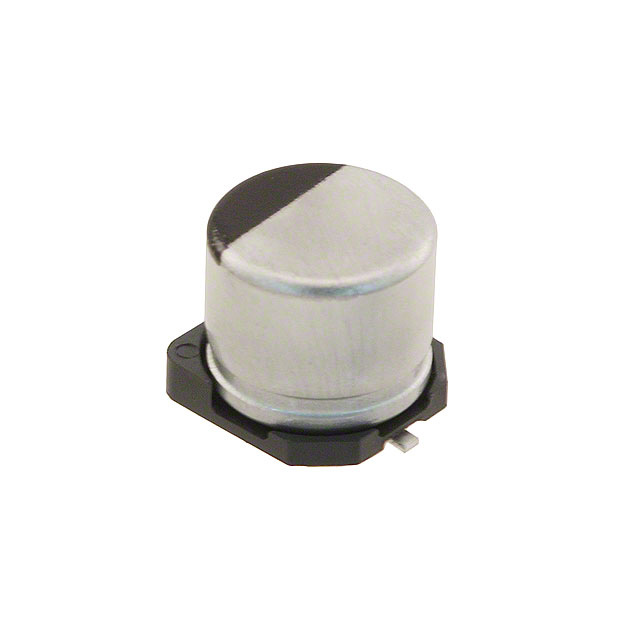

CAP ALUMHYB 100UF 20% 25V SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HHXC250ARA101MF80G
ActiveChemi-Con
CAP ALUMHYB 100UF 20% 25V SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HHXC250ARA101MF80G |
|---|---|
| Applications | Automotive |
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 30 mOhms |
| Height - Seated (Max) [Max] [z] | 8 mm |
| Height - Seated (Max) [Max] [z] | 0.315 in |
| Lifetime @ Temp. | 4000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ratings | AEC-Q200 |
| Ripple Current @ High Frequency | 1.4 A |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Surface Mount Land Size [x] | 6.6 mm |
| Surface Mount Land Size [x] | 0.26 in |
| Surface Mount Land Size [y] | 0.26 in |
| Surface Mount Land Size [y] | 6.6 mm |
| Tolerance | 20 % |
| Type | Hybrid |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.85 | |
| 10 | $ 0.52 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 0.85 | ||
| 10 | $ 0.52 | |||
| 50 | $ 0.39 | |||
| 100 | $ 0.35 | |||
| Tape & Reel (TR) | 900 | $ 0.26 | ||
| 1800 | $ 0.24 | |||
| 2700 | $ 0.23 | |||
| 4500 | $ 0.22 | |||
| 6300 | $ 0.21 | |||
| 9000 | $ 0.21 | |||
| 22500 | $ 0.20 | |||
| 45000 | $ 0.19 | |||
Description
General part information
HHXC250ARA101MF80G
100 µF 25 V Aluminum - Polymer Capacitors Radial, Can - SMD 30mOhm 4000 Hrs @ 125°C
