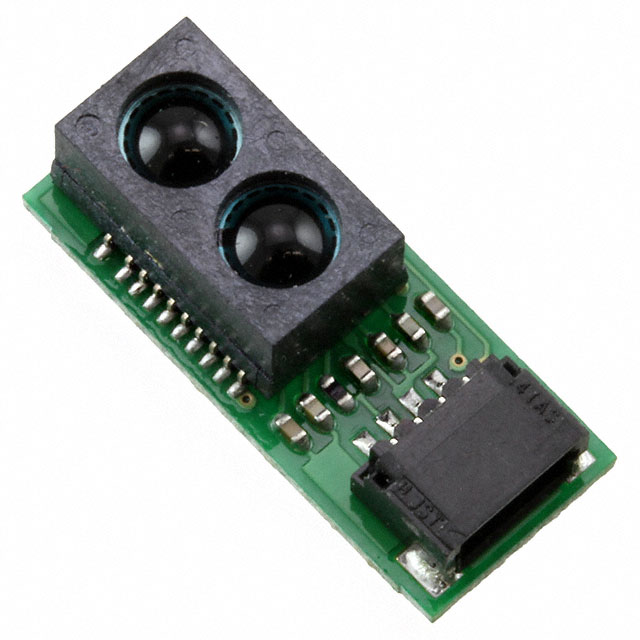

GP2Y0E02A
ActiveSHARP/Socle Technology
SENSOR OPTICAL 4-50CM ANALOG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GP2Y0E02A
ActiveSHARP/Socle Technology
SENSOR OPTICAL 4-50CM ANALOG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GP2Y0E02A |
|---|---|
| Current - Supply | 36 mA |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Type | Analog |
| Sensing Distance [Max] | 500 mm |
| Sensing Distance [Min] | 4 cm |
| Voltage - Output (Typ) @ Distance | 50 cm, 550 mV |
| Voltage - Output Difference (Typ) @ Distance | 1.65 V |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.55 | |
| 10 | $ 6.04 | |||
| 25 | $ 5.59 | |||
| 100 | $ 5.32 | |||
Description
General part information
GP2Y0E02A
Optical Sensor 4 ~ 50cm Analog Output
Documents
Technical documentation and resources
