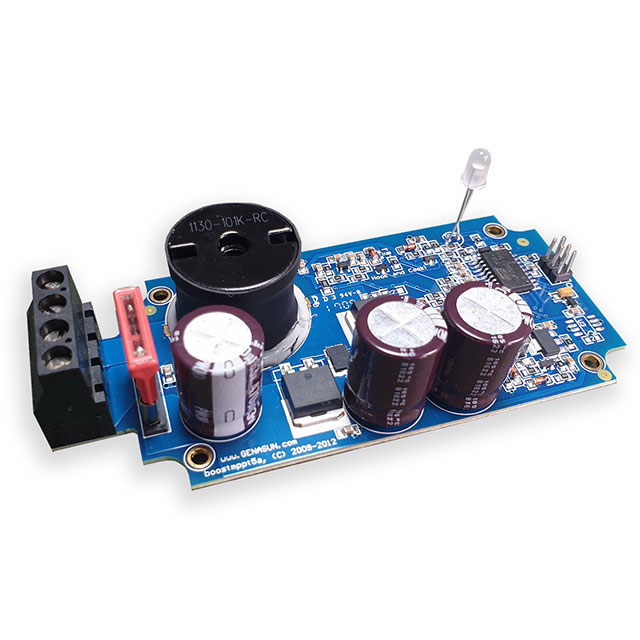

GVB-8-LI-14.2V-PCB MPPT
ActiveGenasun
BATT CHARGER SOLAR 12V 8A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GVB-8-LI-14.2V-PCB MPPT |
|---|---|
| Battery Chemistry | LiFePO4 |
| Charge Current - Max [Max] | 8 A |
| Features | LED Indicator |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power - Max [Max] | 105 W |
| Size / Dimension [x] | 5.5 in |
| Size / Dimension [x] | 139.7 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 2.5 in |
| Size / Dimension [z] | 1.2 " |
| Size / Dimension [z] | 30.5 mm |
| Termination Style | Screw Terminal |
| Type | Solar Charger |
| Voltage - Input [Max] | 12 V |
| Voltage - Input [Min] | 5 V |
| Voltage - Nominal | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 140.00 | |
| 50 | $ 119.00 | |||
Description
General part information
GVB-8-LI-14.2V-PCB MPPT
Solar Charger Battery Charger 12V 8A
