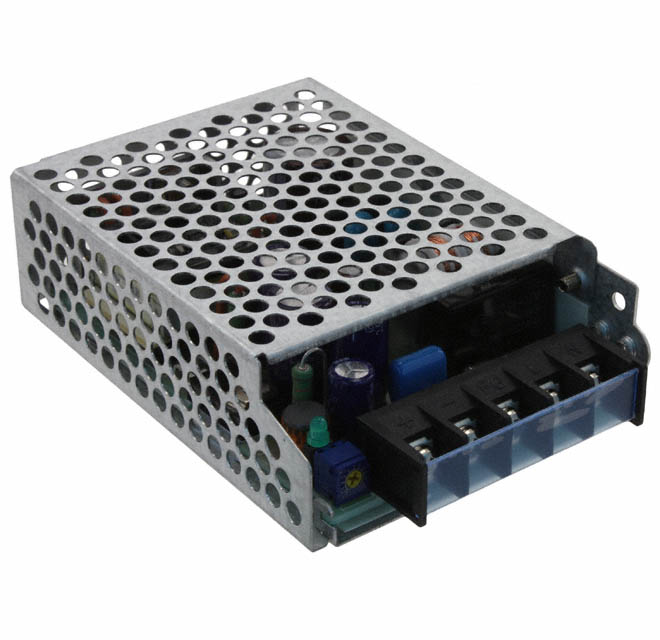

HK25A-15/A
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 15V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HK25A-15/A
ObsoleteTDK-LAMBDA
AC/DC CONVERTER 15V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HK25A-15/A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 1.7 A |
| Efficiency | 77 % |
| Features | DC Input Capable, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 119.1 mm |
| Size / Dimension [x] | 4.69 " |
| Size / Dimension [y] | 35.1 mm |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [z] | 71.9 mm |
| Size / Dimension [z] | 2.83 " |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.14 | |
Description
General part information
HK25A-15/A
Enclosed AC DC Converters 1 Output 15V 85 ~ 132 VAC Input
