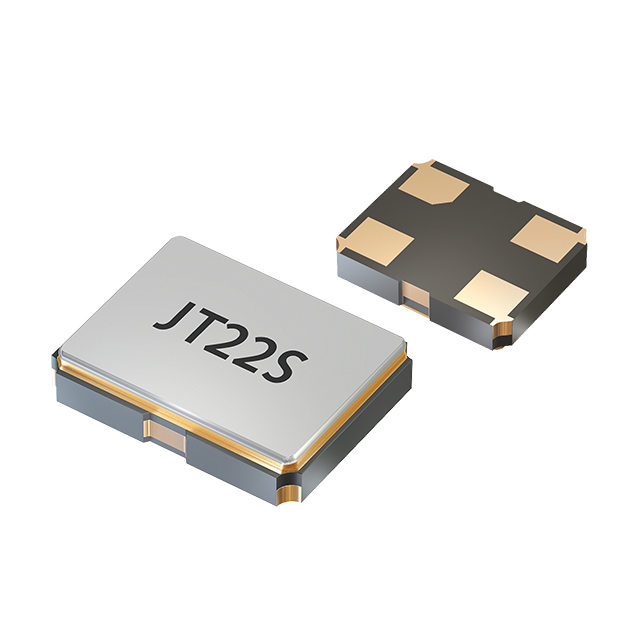

O 25,0-JT22S-B-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 25.0000MHZ SNWV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 25,0-JT22S-B-K-3,3-LF
ActiveJauch Quartz
XTAL OSC TCXO 25.0000MHZ SNWV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 25,0-JT22S-B-K-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 1.5 mA |
| Frequency | 25 MHz |
| Frequency Stability | 2 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.24 | |
| 10 | $ 2.82 | |||
| 50 | $ 2.55 | |||
| 100 | $ 2.45 | |||
| Digi-Reel® | 1 | $ 3.24 | ||
| 10 | $ 2.82 | |||
| 50 | $ 2.55 | |||
| 100 | $ 2.45 | |||
| Tape & Reel (TR) | 500 | $ 2.22 | ||
| 1000 | $ 2.13 | |||
| 1500 | $ 2.08 | |||
| 2500 | $ 2.01 | |||
| 3500 | $ 1.97 | |||
| 5000 | $ 1.93 | |||
Description
General part information
O 25,0-JT22S-B-K-3,3-LF
25 MHz TCXO Clipped Sine Wave Oscillator 3.3V 4-SMD, No Lead
