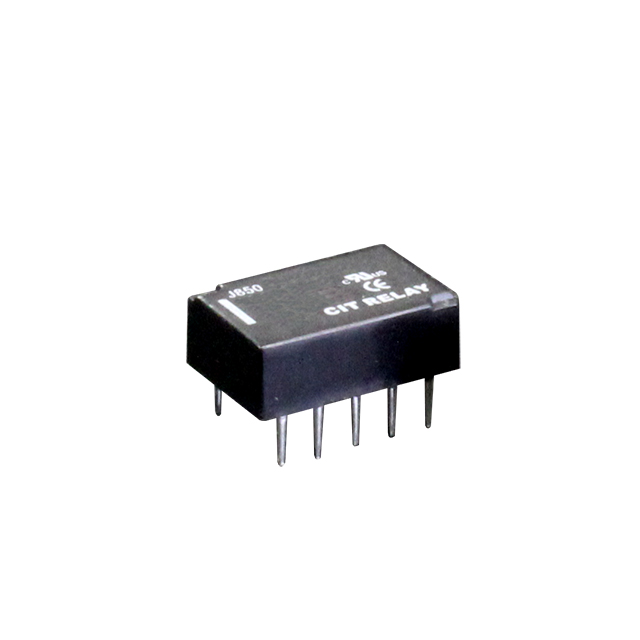

J8502CS5VDC
ActiveCIT Relay and Switch
RELAY GENERAL PURPOSE DPDT 1A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | J8502CS5VDC |
|---|---|
| Coil Current | 28.1 mA |
| Coil Resistance | 178 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Rating (Current) | 1 A |
| Load - Max Switching | 220 W, 250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 4 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | PC Pin |
