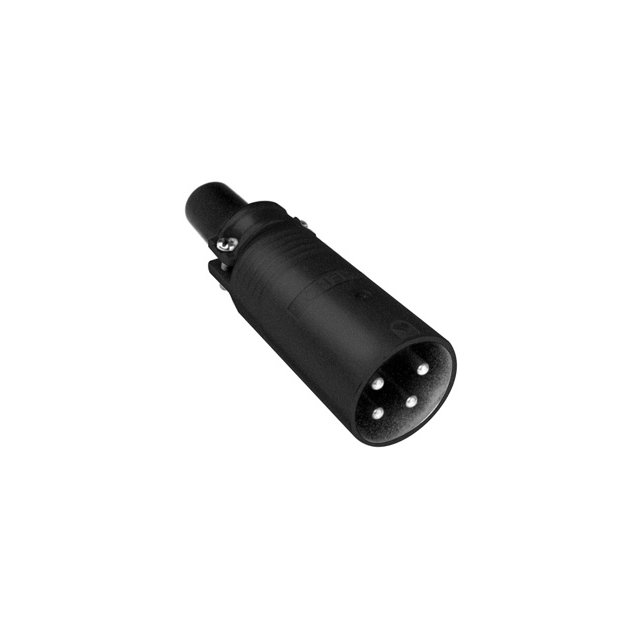

EP-4-12B
ActiveAMPHENOL AUDIO
CONN RCPT MALE 4P TIN SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
EP-4-12B
ActiveAMPHENOL AUDIO
CONN RCPT MALE 4P TIN SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EP-4-12B |
|---|---|
| Applications | Audio |
| Cable Opening [Max] [diameter] | 16 mm |
| Cable Opening [Max] [diameter] | 0.63 in |
| Cable Opening [Min] [diameter] | 0.354 in |
| Cable Opening [Min] [diameter] | 9 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Brass |
| Current Rating (Amps) | 20 A |
| Fastening Type | Latch Holder |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP40 |
| Insert Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Black |
| Shell Material | Zinc Die Cast |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 9.53 | |
Description
General part information
EP-4-12B
4 Position Circular Connector Receptacle, Male Pins Solder Cup
