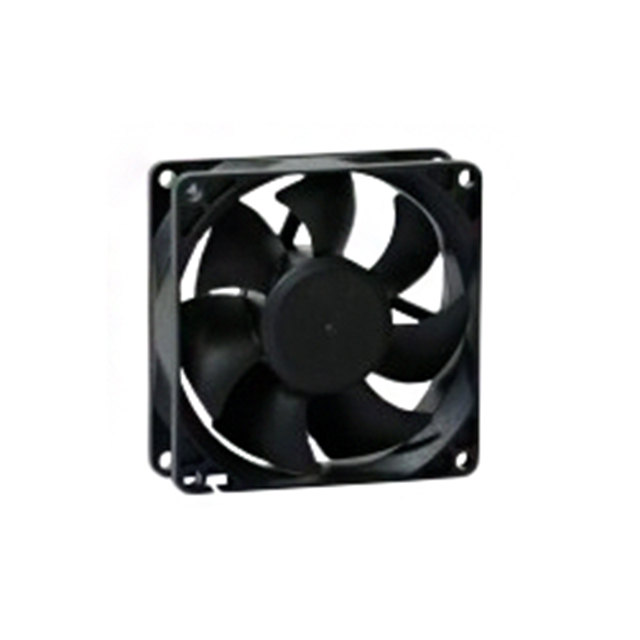

MR8025H12B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MR8025H12B-FSR
ActiveMechatronics Bearing Group
FAN AXIAL 80X25MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MR8025H12B-FSR |
|---|---|
| Air Flow | 60 CFM |
| Air Flow | 1.68 mł/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.31 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 41.5 dB |
| RPM | 4200 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 72.2 Pa |
| Static Pressure | 0.29 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 0.119 lb |
| Weight | 53.98 g |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.12 | |
| 10 | $ 10.61 | |||
| 25 | $ 9.98 | |||
| 50 | $ 9.60 | |||
| 100 | $ 8.85 | |||
| 300 | $ 8.28 | |||
| 500 | $ 8.15 | |||
Description
General part information
MR8025H12B-FSR
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 60.0 CFM (1.68m³/min) 2 Wire Leads
