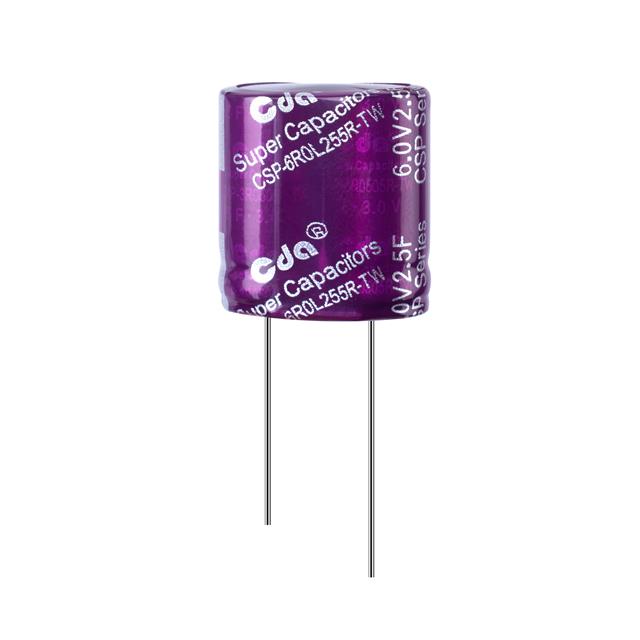

CSP-6R0L255R-TW
ActiveZhi Feng Wei Technology
6.0V 2.5F 20*10*22 EDLC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSP-6R0L255R-TW
ActiveZhi Feng Wei Technology
6.0V 2.5F 20*10*22 EDLC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSP-6R0L255R-TW |
|---|---|
| Capacitance | 2.5 F |
| ESR (Equivalent Series Resistance) | 180 mOhm |
| Height - Seated (Max) [Max] [z] | 23.5 mm |
| Height - Seated (Max) [Max] [z] | 0.925 in |
| Lead Spacing | 0.61 " |
| Lead Spacing | 15.5 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [y] | 10 mm |
| Termination | PC Pins |
| Voltage - Rated | 6 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.86 | |
| 10 | $ 3.99 | |||
| 50 | $ 3.23 | |||
| 100 | $ 2.99 | |||
| 500 | $ 2.58 | |||
| 1000 | $ 2.46 | |||
| 2500 | $ 2.32 | |||
Description
General part information
CSP-6R0L255R-TW
2.5 F (EDLC) Supercapacitor 6 V Radial, Can 180mOhm @ 1kHz 1000 Hrs @ 65°C
