P121
ActiveVoltaic Systems
0.3W 2V SOLAR PANEL ETFE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P121
ActiveVoltaic Systems
0.3W 2V SOLAR PANEL ETFE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P121 |
|---|---|
| Current - Short Circuit (Isc) | 150 mA |
| Current @ Pmpp | 130 mA |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 330 mW |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [x] | 2.047 in |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [y] | 2.047 " |
| Size / Dimension [z] | 2.9 mm |
| Size / Dimension [z] | 0.114 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 2.84 V |
| Voltage @ Pmpp | 2.43 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.50 | |
Description
General part information
P121

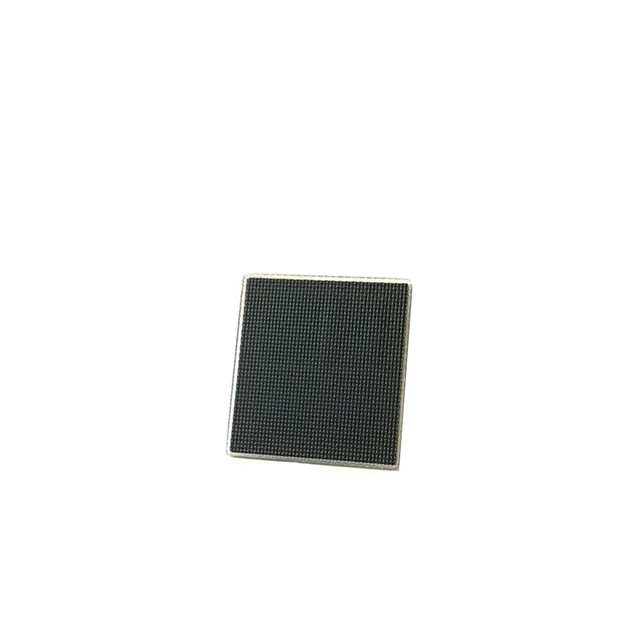

Monocrystalline Solar Cell 330 mW 2.84 V
Documents
Technical documentation and resources
