9021526.22
ActiveJULABO

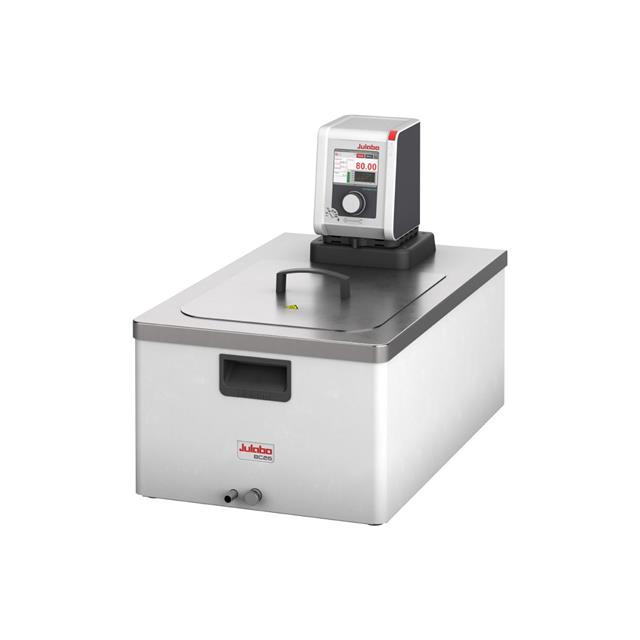

DYNEO DD-BC26 HEATING CIRCULATOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9021526.22
ActiveJULABO
DYNEO DD-BC26 HEATING CIRCULATOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9021526.22 |
|---|---|
| Dimensions - Overall [x] | 619.8 mm |
| Dimensions - Overall [x] | 24.4 in |
| Dimensions - Overall [y] | 15.4 " |
| Dimensions - Overall [y] | 391.2 mm |
| Dimensions - Overall [z] | 18.9 " |
| Dimensions - Overall [z] | 480.1 mm |
| Features | Flow Diverter, Adjustable Pump, USB A, External Pt100, USB B |
| Flow Rate | 27 LPM |
| Flow Rate | 7.13 GPM |
| Fluid Capacity | 26000 ML |
| Fluid Capacity | 879.2 oz |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | 20 °C |
| Product Type | Recirculating Heater |
| Ratings | CE |
| Voltage | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5652.00 | |
Description
General part information
9021526.22
Recirculating Heater 115V 7.13GPM (27.0LPM)
Documents
Technical documentation and resources
