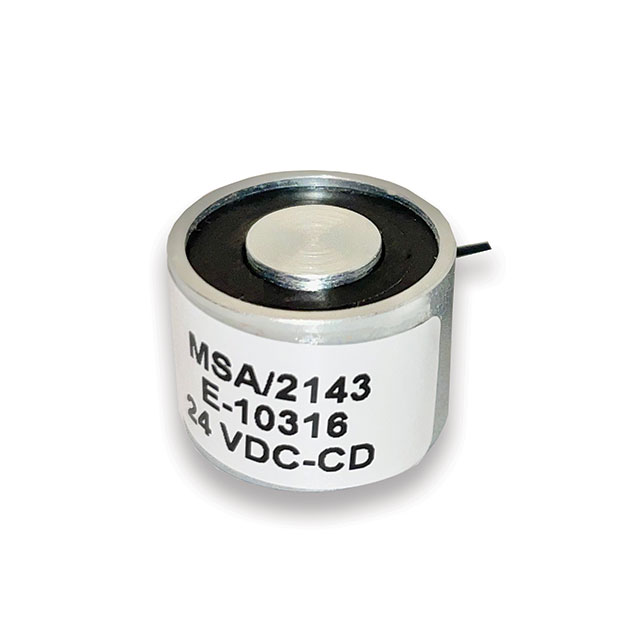

E-10316
ActiveMagnet-Schultz of America
ELECTROMAGNET 20 MM, 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E-10316
ActiveMagnet-Schultz of America
ELECTROMAGNET 20 MM, 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E-10316 |
|---|---|
| DC Resistance (DCR) | 303 Ohm |
| Duty Cycle | Continuous |
| Power (Watts) | 1.9 W |
| Size / Dimension [diameter] | 20 mm |
| Size / Dimension [diameter] | 0.787 in |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.54 | |
| 10 | $ 18.76 | |||
| 50 | $ 17.11 | |||
Description
General part information
E-10316
Continuous Duty Solenoid Type Stroke 24VDC
