TYN16S-600CTJ
ActiveWeEn Semiconductors Co., Ltd
SCR 600V 16A DPAK
Deep-Dive with AI
Search across all available documentation for this part.
TYN16S-600CTJ
ActiveWeEn Semiconductors Co., Ltd
SCR 600V 16A DPAK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TYN16S-600CTJ |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 6 mA |
| Current - Hold (Ih) (Max) [Max] | 40 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 198 A, 180 A |
| Current - Off State (Max) [Max] | 1 mA |
| Current - On State (It (AV)) (Max) [Max] | 10.2 A |
| Current - On State (It (RMS)) (Max) | 16 A |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

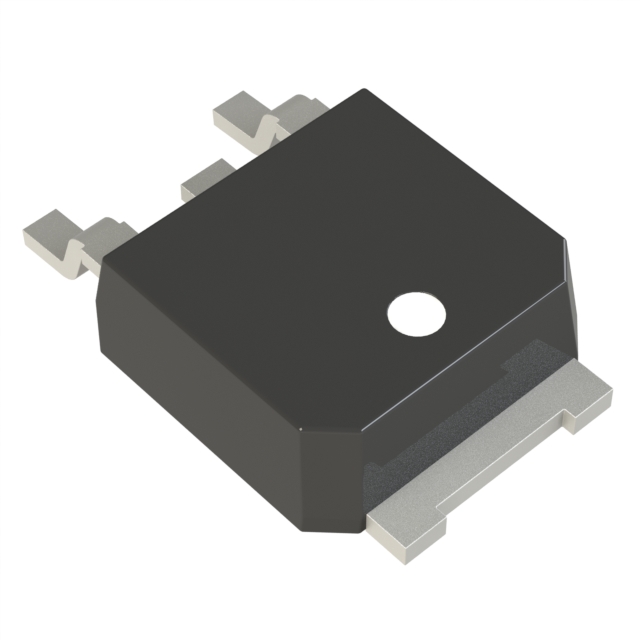

| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| SCR Type | Standard Recovery |
| Supplier Device Package | DPAK |
| Voltage - Gate Trigger (Vgt) (Max) [Max] | 1.3 V |
| Voltage - Off State | 600 V |
| Voltage - On State (Vtm) (Max) [Max] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 7500 | $ 0.30 | |
| 12500 | $ 0.28 | |||
| 25000 | $ 0.28 | |||
Description
General part information
TYN16S-600CTJ
SCR 600 V 16 A Standard Recovery Surface Mount DPAK
