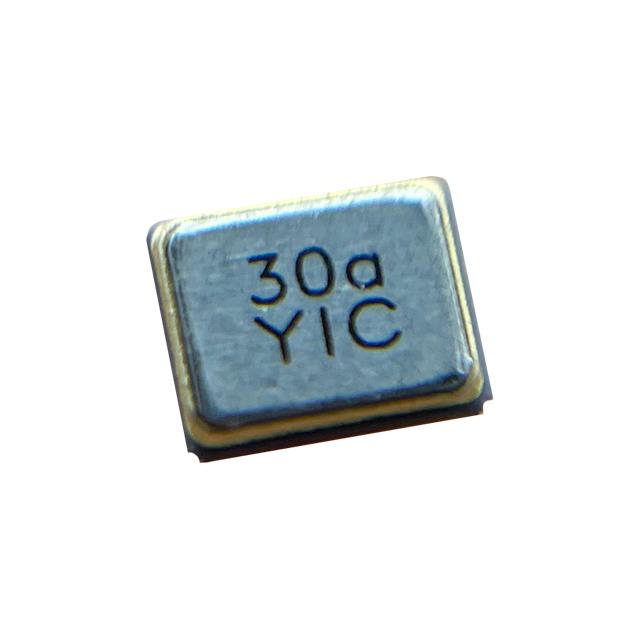

24M8PI/XT214-10/20
ActiveYIC
CRYSTAL 24MHZ 8PF SMD 2.0X1.6MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 24M8PI/XT214-10/20 |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 24 MHz |
| Frequency Stability | 20 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.03 in |
| Height - Seated (Max) [Max] [z] | 0.75 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| Digi-Reel® | 1 | $ 0.40 | ||
| Tape & Reel (TR) | 3000 | $ 0.40 | ||
Description
General part information
24M8PI/XT214-10/20
24 MHz ±10ppm Crystal 8pF 100 Ohms 4-SMD, No Lead
