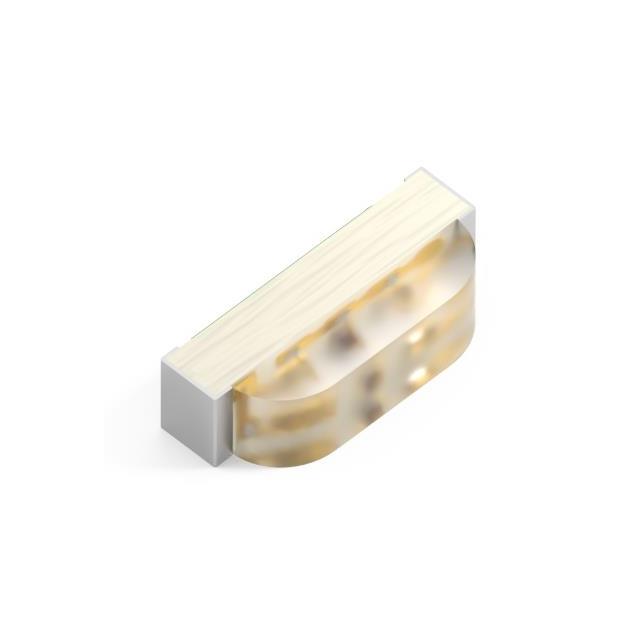

XZM2CYKXDGK161WCC
ActiveSunLED
2.5X0.7MM YEL/GRN RT ANGLE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2CYKXDGK161WCC
ActiveSunLED
2.5X0.7MM YEL/GRN RT ANGLE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2CYKXDGK161WCC |
|---|---|
| Color | Green, Yellow |
| Configuration | Common Cathode |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.85 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.1 mm |
| Lens Size [y] | 0.7 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 547 mcd |
| Millicandela Rating [custom] | 297 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 2 V |
| Wavelength - Dominant | 525 nm, 590 nm |
| Wavelength - Peak [custom] | 590 nm |
| Wavelength - Peak [custom] | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.11 | |
| 10 | $ 0.72 | |||
| 100 | $ 0.47 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 1.11 | ||
| 10 | $ 0.72 | |||
| 100 | $ 0.47 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| 6000 | $ 0.34 | |||
| 15000 | $ 0.33 | |||
| 30000 | $ 0.32 | |||
Description
General part information
XZM2CYKXDGK161WCC
Green, Yellow 525nm Green, 590nm Yellow LED Indication - Discrete 3.3V Green, 2V Yellow 4-SMD, No Lead
