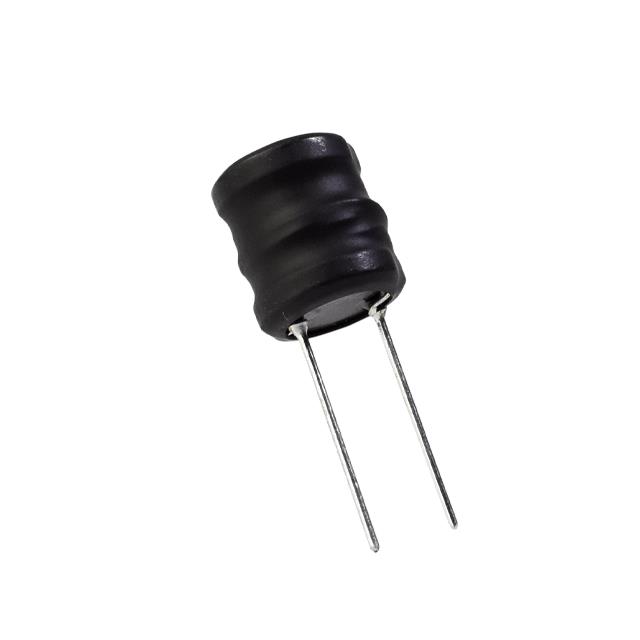

DRC-1213-471J-UL
ActiveSignal Transformer
RADIAL INDUCTOR WITH LEADS, 470.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC-1213-471J-UL |
|---|---|
| Current - Saturation (Isat) | 1.1 A |
| Current Rating (Amps) | 1.1 A |
| DC Resistance (DCR) [Max] | 430 mOhm |
| Height - Seated (Max) [Max] | 0.63 in |
| Height - Seated (Max) [Max] | 16 mm |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Radial, Vertical Cylinder |
| Shielding | Unshielded |
| Supplier Device Package | Radial, Vertical Cylinder |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 20000 | $ 1.13 | |
Description
General part information
DRC-1213-471J-UL
470 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 430mOhm Max Radial, Vertical Cylinder
Documents
Technical documentation and resources
No documents available
