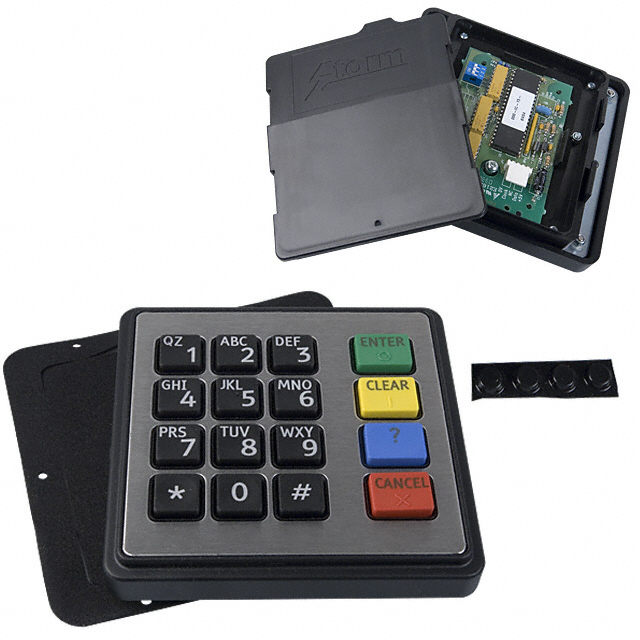

6000-220023
ObsoleteSTORM INTERFACE
SWITCH KEYPAD 16KEY 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6000-220023
ObsoleteSTORM INTERFACE
SWITCH KEYPAD 16KEY 0.05A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6000-220023 |
|---|---|
| Approval Agency | CE, cURus |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Anti-Vandal |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Key Color | Multiple |
| Key Type | Polymer |
| Legend | Telephone Format, Function Keys |
| Legend Color | White, Black |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 4 |
| Mounting Type | Panel Mount, Rear |
| Number of Keys | 16 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | 1.81 mOhm |
| Panel Cutout Dimensions [x] | 115 mm |
| Panel Cutout Dimensions [y] | 109.5 mm |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
6000-220023
Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
