1757822-5
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB HOUSING RCPT 50POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1757822-5
ActiveTE Connectivity Aerospace, Defense and Marine
CONN D-SUB HOUSING RCPT 50POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1757822-5 |
|---|---|
| Color | Blue |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polyester |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Shell Finish Thickness | 20 µin |
| Shell Finish Thickness | 0.51 µm |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout | 5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 27.83 | |
Description
General part information
1757822-5

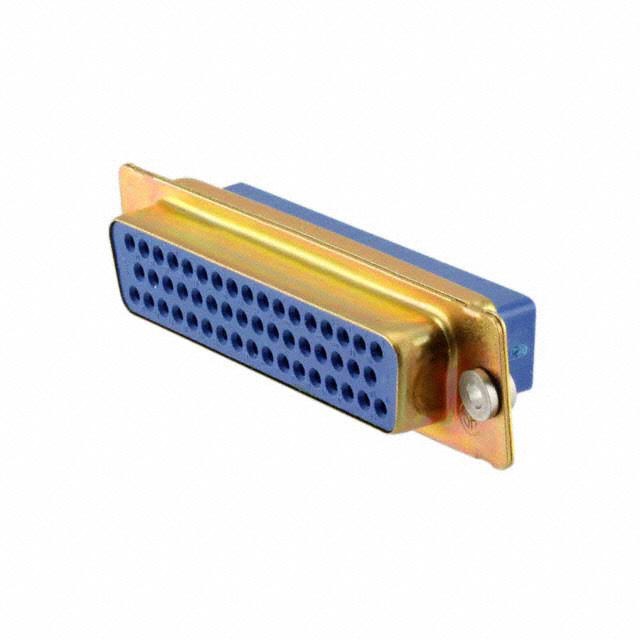

Receptacle for Female Contacts Housing D-Sub Connector 50 Position
Documents
Technical documentation and resources
