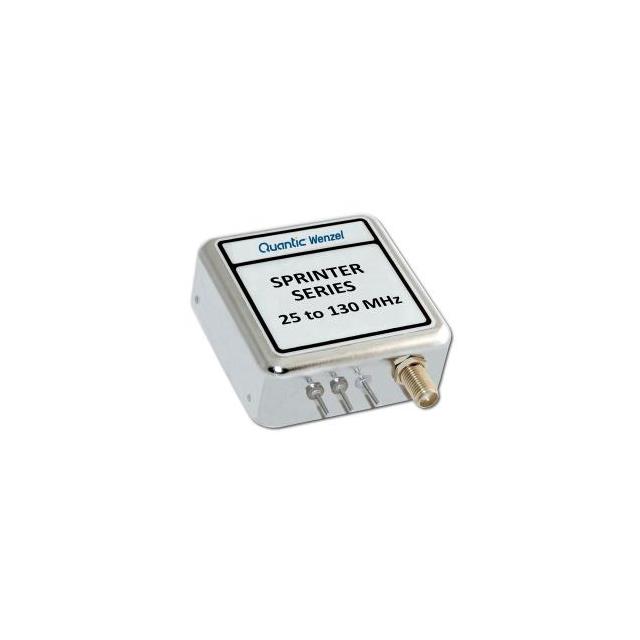

501-33926
ActiveQuantic Wenzel
XTAL OSC OCXO 100.0000MHZ
Deep-Dive with AI
Search across all available documentation for this part.
501-33926
ActiveQuantic Wenzel
XTAL OSC OCXO 100.0000MHZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 501-33926 |
|---|---|
| Absolute Pull Range (APR) | 500 ppb |
| Base Resonator | Crystal |
| Frequency | 100 MHz |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Height - Seated (Max) [Max] [z] | 25.4 mm |
| Package / Case | Module |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Type | OCXO |
| Voltage - Supply [Max] | 15 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 820.00 | |
Description
General part information
501-33926
100 MHz OCXO Oscillator 12V ~ 15V Module
Documents
Technical documentation and resources
No documents available
