PDTA124XT,215
ActiveFreescale Semiconductor - NXP

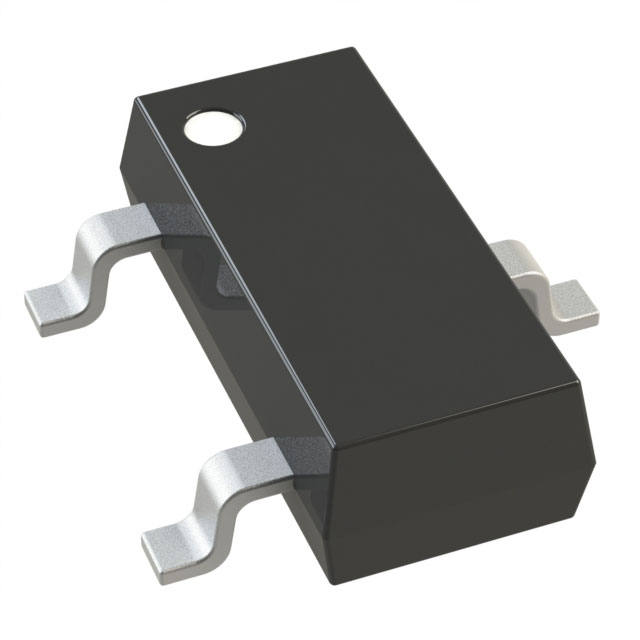

TRANS PREBIAS PNP 50V TO236AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDTA124XT,215
ActiveFreescale Semiconductor - NXP
TRANS PREBIAS PNP 50V TO236AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDTA124XT,215 |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 100 mA |
| Current - Collector Cutoff (Max) [Max] | 100 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 80 |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power - Max [Max] | 250 mW |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 47000 Ohms |
| Supplier Device Package | TO-236AB |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 150 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.11 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.16 | ||
| 10 | $ 0.11 | |||
| 100 | $ 0.06 | |||
| 500 | $ 0.05 | |||
| 1000 | $ 0.03 | |||
| Tape & Reel (TR) | 3000 | $ 0.02 | ||
| 6000 | $ 0.02 | |||
| 9000 | $ 0.02 | |||
| 30000 | $ 0.02 | |||
| 75000 | $ 0.01 | |||
| 150000 | $ 0.01 | |||
Description
General part information
PDTA124XT,215
Pre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50 V 100 mA 250 mW Surface Mount TO-236AB
