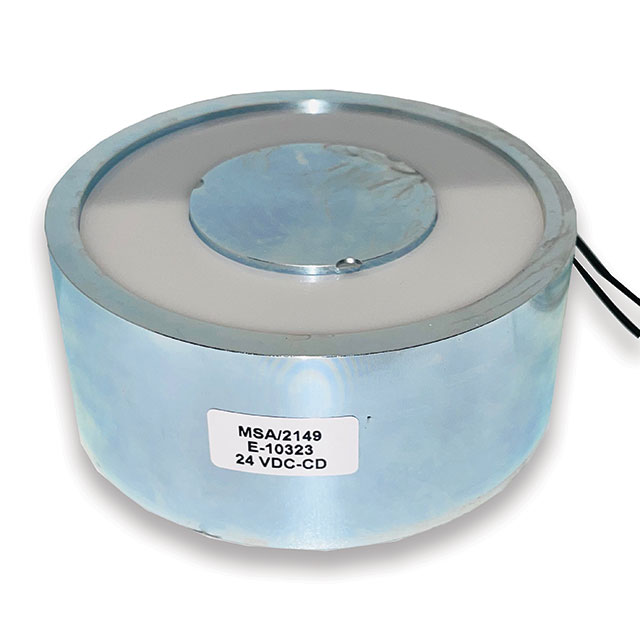

E-10323
ActiveMagnet-Schultz of America
SOLENOID 100 MM, 24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E-10323
ActiveMagnet-Schultz of America
SOLENOID 100 MM, 24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E-10323 |
|---|---|
| DC Resistance (DCR) | 33.9 Ohm |
| Duty Cycle | Continuous |
| Power (Watts) | 17 W |
| Size / Dimension [diameter] | 100 mm |
| Size / Dimension [diameter] | 3.937 " |
| Termination Style | Wire Leads |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 138.17 | |
| 10 | $ 126.19 | |||
| 25 | $ 115.14 | |||
Description
General part information
E-10323
Continuous Duty Solenoid Type Stroke 24VDC
