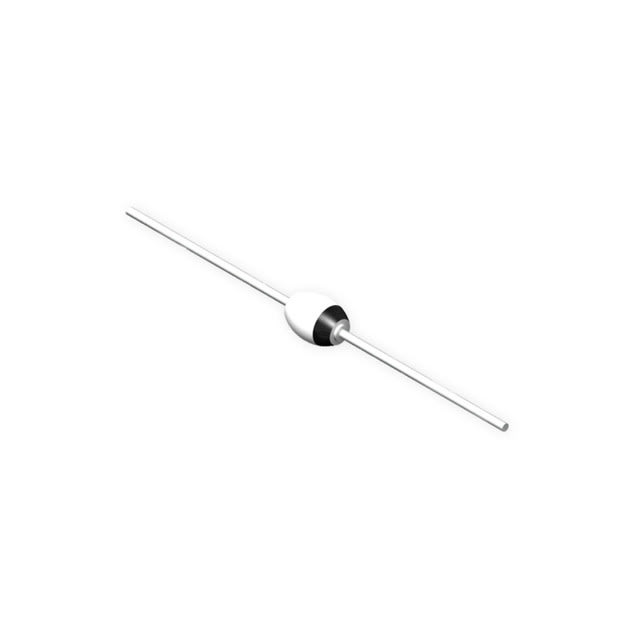

1N5806
ActiveSolid State Inc.
DIODE GEN PURP 150V 2.5A DO204AP
Deep-Dive with AI
Search across all available documentation for this part.
1N5806
ActiveSolid State Inc.
DIODE GEN PURP 150V 2.5A DO204AP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5806 |
|---|---|
| Current - Reverse Leakage @ Vr | 1 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -65 C |
| Package / Case | DO-204AP, Axial |
| Reverse Recovery Time (trr) | 25 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-204AP |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 875 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.46 | |
| 100 | $ 5.07 | |||
Description
General part information
1N5806
Diode 150 V 2.5A Through Hole DO-204AP
Documents
Technical documentation and resources
No documents available
